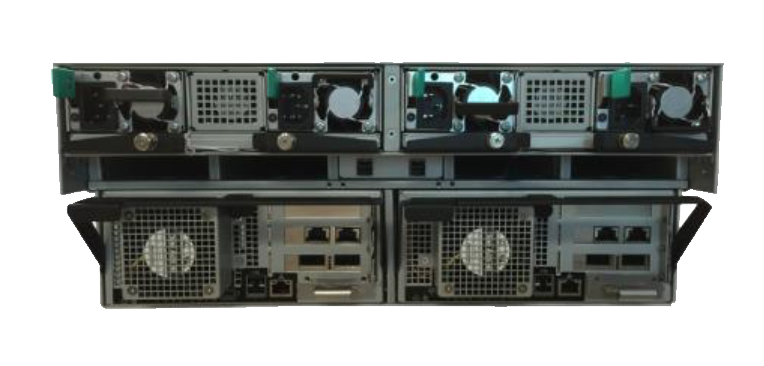

NDS-4900

High Performance Enterprise Class High Density 94 drive Storage Server
The Viking Enterprise Solutions (VES) NDS-4900 High Density Storage Server combines 90 3.5” hard disk drives (HDD) with four 2.5” solid state disks (SSD) at 12Gb/s. There is no need to sacrifice HDD slots to incorporate SSDs for caching.

The enclosure contains either two single or two dual processor Haswell/Broadwell servers. Each server can power 2x 145W processors and 2x full spec PCIe cards. The servers are specifically designed for data throughput. The VES NDS-4900 Storage Server offers best-in-class performance and capacity, space-saving density, “green” energy efficiency and 24×7 high-availability redundancy of key components.

The NDS-4900 fits into an industry standard 19” wide by 1.2m deep rack. Its flexible configuration allows it to be deployed in a variety of applications.

Datasheets

PRODUCT BRIEF INQUIRY

Features

Operation with either single or dual servers or I/O controllers for redundant failover
Multiple drive partitioning / split-bus zoning modes
Hot-pluggable servers or I/O controller(s), fan modules, & redundant, high efficiency, advanced power modules
SFF-8644, 12 Gb/s, SAS 3.0 host and expansion ports or expansion of up to 100 Gb/s network interface with server modules
Flexibility to choose SAS or SATA drives to achieve the right performance, reliability & price

Modular design increases product configuration flexibility
Standard chassis customization & branding available
SAS point-to-point connectivity isolates drive failures, increasing reliability & fault tolerance & improving performance
SAS daisy-chain expansion to additional storage arrays & other SFF-8644 SAS-compliant host/expansion ports, or add-on PCIe 3.0 HBA

Host/Expansion Interfaces	Capacity	Hot-Swappable Components	Firmware
One or two Haswell/Broadwell server modules	94-drive capacity per 4U enclosure	Two Haswell/Broadwell servers or two JBOD I/O modules	IPMI 2.0 baseboard management controller
Single or dual 145W processors	90 LFF drive slots in main bay	Two AC to DC power modules	SCSI Enclosure Services (SES) 3.0-based firmware
Up to 3 PCIe 3.0 slots per server module	Four SFF drive slots in rear of enclosure	Each module includes two 1,600 watt power supplies
Two x8 PCIe 3.0	All drives 12Gb/s	One +5V regulator per power module provides hard drive power
One x16 PCIe 3.0 (with dual CPU only)		Optional supercap / battery modules are incorporated into the power modules
Two M.2 boot drives		Four independent AC power inputs
NVDIMM support		Up to 90 Drives in main bay
Supercap power fail support		Up to four SSDs in rear bays
One or two VES SAS 3.0 JBOD I/O controller modules, each with six 12Gb/sec SAS 3.0 SFF-8644 ports

4U Rackmount Enclosure	Failure Notifications	Disk Drives	AC Power
Dimensions: 7.0 in. H x 16.5 in. W x 37.8 in. D (17.7 cm H x 41.9 cm W x 96.0 cm D)	IPMI fault reporting	94 independent point-to-point connections to each SAS or SATA disk drive with dual-port access and failover by each controller to each drive	Input voltage: 180-264V AC
SCSI Enclosure Services (SES-3.0) over in-band interface and via LEDs	SCSI Enclosure Services (SES-3.0) over in-band interface and via LEDs	90 3.5” drives in main drive bay	Input frequency: 47-63 Hz
		Four 2.5” drive bays at rear of enclosure	Power supplies per power module: 2
		SATA drives require optional 2:1 Active MUX (interposer card)	Input current: 9.4 amps max @ 200V AC per power supply
		Form factor: 3.5” & 2.5” SAS, SATA & SSD drives	Inrush current: 40 amps peak per power supply
		Rotational speeds up to 15K RPM	Maximum system continuous DC output power rating: 3200 watts
		Interface: 12Gb/6Gb/3Gb SAS; 6Gb/3Gb SATA

Drive Partitioning/Split-Bus Zoning	Monitoring and Reporting	Performance	Operating Environment
Controller module can be zoned in two pre-defined zoning schemes for I/O modules & two for server modules	Monitoring for temperature, power, cooling (including fan speed control), disk drives, server & I/O module(s), as well as error rates & quality of service	Up to 48 GB/s (sustained reads) using 12 Gb/s SSD drives	Temperature: 5° to 35°C
Additional zoning schemes can be developed upon request	In-band reporting of all serial number, part number, & revisions of the server & I/O modules, power modules, drives, & chassis	Up to 38 GB/s (sustained reads) using 6 Gb/s SSD drives	Relative humidity: 20% to 80% (non-condensing)
			Altitude: -200 to 10,000 feet
			Shock: 3G at 11ms, 1/2 sine wave pulse
			Vibration: 0.10G at 5 Hz to 500 Hz
			Acoustics (declared sound power): 8.4 Bels with server Modules 7.7 Bels with I/O modules; at idle/active operation tested to ISO 7779

Non-Operating Environment	Electromagnetic Emissions & Immunity Standards	Safety Standards	Quality Standards	Environment Protection
Temperature: -40° to 60°C	CE Mark	UL 60950	Manufactured under an ISO 9002 registered quality system	RoHS & WEEE compliant
Relative humidity: 10% to 90% (non-condensing)	EN55022: 2010	CSA 22.2-950
Altitude: -200 to 40,000 ft	EN61000 3-2:2014
Shock: 10G at 11ms, 1/2 sine wave pulse	EN61000 3-2:2013
Vibration: 0.5G at 5 Hz to 500 Hz	FCC Class A
	Canadian IECS-003
