Enterprise Class High Density 102 drive High Availability JBOD

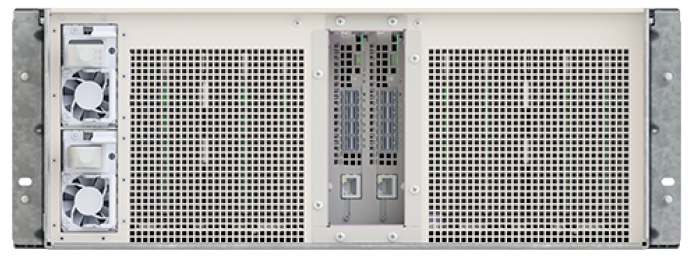

The Viking Enterprise Solutions (VES) NDS-41020 High Density JBOD packages 102 3.5” hard disk drives (HDDs) at 12Gb/s. The enclosure contains two active I/O Modules (IOMs). The VES NDS-41020 Storage JBOD offers best-in-class performance and capacity, space-saving density, “green” energy efficiency and high-availability of all active components. The NDS-41020 fits into an industry standard 19” wide by 1.0m deep rack.

Applications Use Cases
The NDS-41020 JBOD was designed to enable vertical scaling of storage capacity in order to match the needs of a wide range of enterprise grade storage applications requiring full redundancy. The NDS-41020 allows for expanding external storage in file, block and object storage format through a standard SAS interface between the JBOD and any standard storage server. The NDS-41020 provides leading-edge density, capacity, $/GB savings, and reduced footprint for even the largest of today’s hyper-scale data centers.



  • Dual I/O modules for failover keep the system fully operational even with a single IO module
  • Multiple drive partitioning/split-bus zoning modes
  • Hot-pluggable I/O controllers, fan modules & redundant, high efficiency, advanced power modules & 5V regulators
  • SFF-8644, 12Gb/s, SAS 3.0 host & expansion ports or expansion of up to 100Gb/s network interface with server modules
  • Modular design increases product configuration flexibility
  • Standard chassis customization & branding available
  • SAS point-to-point connectivity isolates drive failures, increasing reliability & fault tolerance, while improving performance
  • SAS daisy-chain expansion to additional storage arrays & other SFF-8644 SAS compliant host/expansion ports
  • Special “Lite” configuration also available, featuring a single SAS 3.0 I/O module with 4 12Gb/s SAS 3.0 SFF-8644 ports & supporting SATA drives up to 6Gb/s
Provides exceptional performance and scalability for today’s high density storage environments Leading edge performance SSD arrays, SAS & NVMe
High Density 12 Gb/s LFF HDD Leading edge high performance & high availability solutions
Very High Density SAS 3.0 Connected Enclosure - supports 102 drives in 4U Industry leading cold storage & object storage solutions
Purpose built compute and storage platforms
