1U 86 TB Content Deliver Platform
The Viking Enterprise Solutions (VES) NSS-1080 is Intel Xeon D-154X based system which offers up to 86TB of capacity with spinning LFF drives and SFF SSDs. It is designed to fit in a 2 post or 4 post rack, it can be deployed at edge points of the network for minimizing network load. The system operates in environment of up to 40 C. With it’s exceptional thermal management and drive rotation vibration mitigation, the platform is highly reliable.

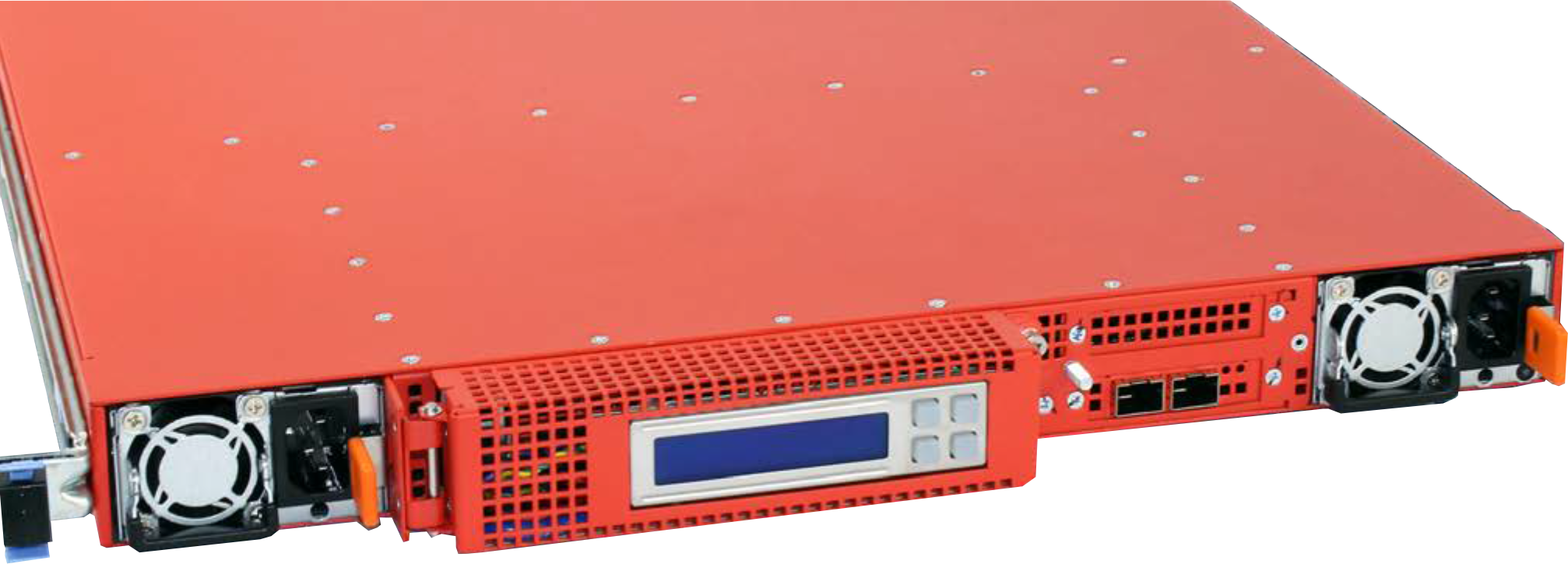

NSS-1080 supports AC and DC redundant supplies for maximum flexibility. It can operate indefinitely with a fail fan minimizing service. A simple LCD panel with button allows basic functionality without any KVM connection.
- Highly reliable platform
- Can operate indefinitely with a fail fan minimizing service
- Operates in environment of up to 40°C
|4U Rackmount Enclosure||AC Power||Monitoring & Reporting||Safety Standards||Environment Protection||Drive Configuration||Ethernet Connectivity||Compute|
|Dimensions: 28” L X 17.5” W X 1.75” H||Input Voltage: 90-264V AC 47-63 Hz||Standard IPMI interface||IEC/EN UL/CSA 60950-1 2nd Edition||RoHS & WEEE compliant||Up to 8 LFF drives||Up to 120 Gb/s Ethernet connectivity via OCP & PCIe interface in dual server configuration||Intel Xeon D-154X Processor|
|Weight for VES NSS-1080: 40 LBS||DC Input: 48V-60V DC 20A MAX||1GbE data center connection for management||Up to 6 SFF SSD||DDR4 64GB|
|2x GbE, IPMI, 2x USB3, VGA|
