1U 122TB Hybrid Edge and CDN Platform

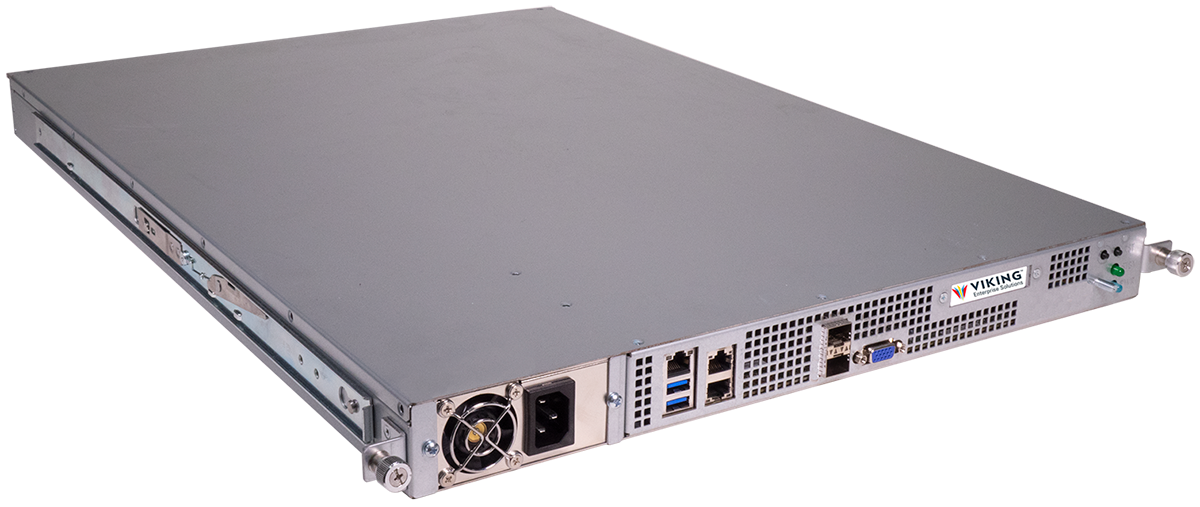

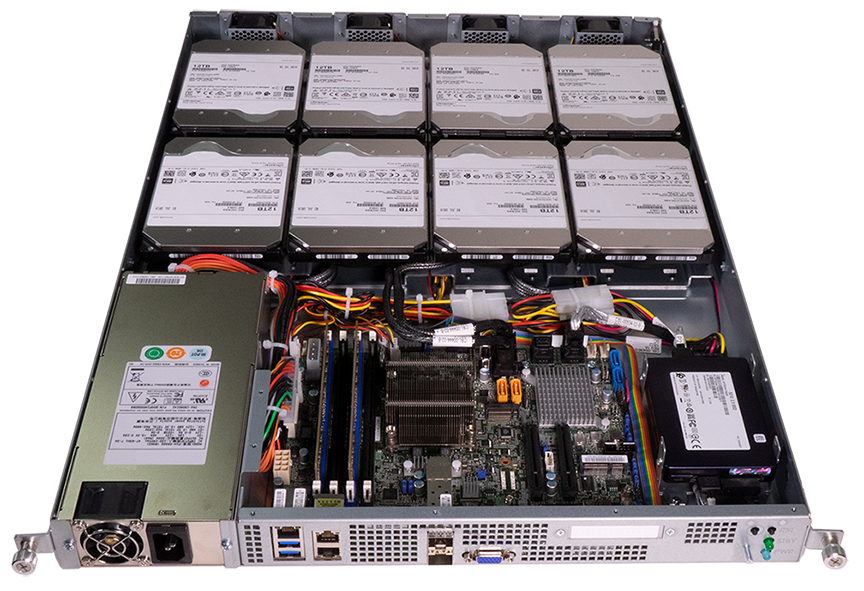

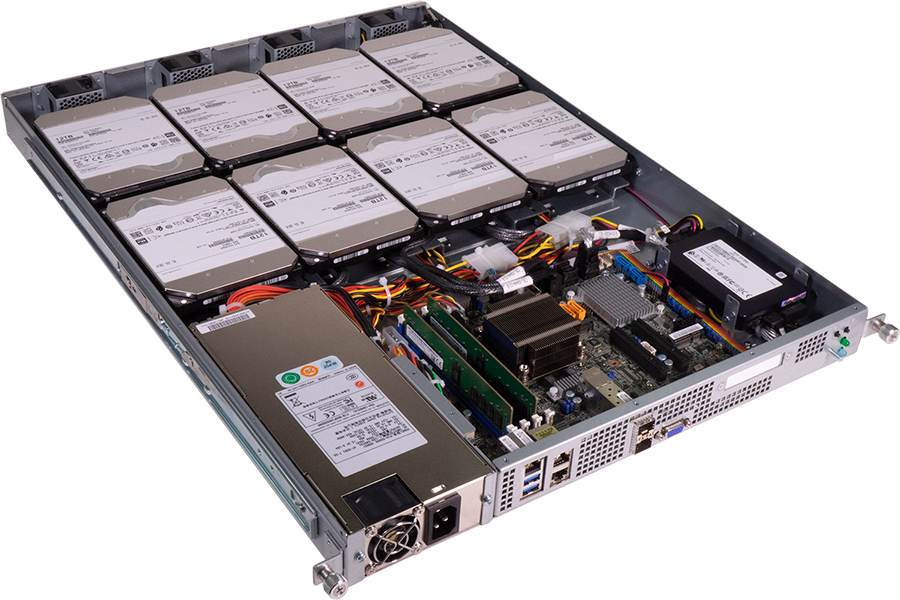

The Viking Enterprise Solutions (VES) NSS-1081/2 is Intel Xeon D-1518 based system which offers up to 122TB of capacity with spinning LFF drives and SFF SSDs. It is designed to fit in a 2 post or 4 post rack, it can be deployed at edge points of the network for minimizing network load. The system operates in environment of up to 40°C. With it’s exceptional thermal management and drive rotation vibration mitigation, the platform is highly reliable.
NSS-1081/2 supports AC and DC for maximum flexibility. It can operate indefinitely with a fail fan minimizing service. Two power and reset buttons, along with two LEDs to indicate power and stand-by provides basic functionality without any KVM connection.
- Highly reliable platform
- Can operate indefinitely with a fail fan minimizing service
- Operates in environment of up to 40°C
|4U Rackmount Enclosure||AC Power||Monitoring & Reporting||Safety Standards||Environment Protection||Drive Configuration||Ethernet Connectivity||Compute|
|Dimensions: 28” L X 17.5” W X 1.75” H||Input Voltage: 100-240V AC 50/60 Hz||Standard IPMI interface||IEC/EN UL/CSA 60950-1 2nd Edition||RoHS & WEEE compliant||Up to 8 LFF drives||Up to 20 Gb/s Ethernet connectivity via motherboard||Intel Xeon D-1518 Processor|
|Weight for VES NSS-1081/2: 40 LBS||DC Input: 48V-60V DC 16A - 10A MAX||1GbE data center connection for management||NEBS Level 1 Compliant||Single NVMe M.2 SSD (2242/2280/2210)||128GB ECC DDR4 RDIMM 64GB ECC/Non-ECC DDR4 UDIMM|
|Option for a PCIe Gen 3 x8 half-length, half-height expansion card|
