NSS-2340
![$gallery[0]['title']](https://www.vikingenterprisesolutions.com/wp-content/uploads/NSS2340_img1.png)
2U 250 TB Content Delivery Platform

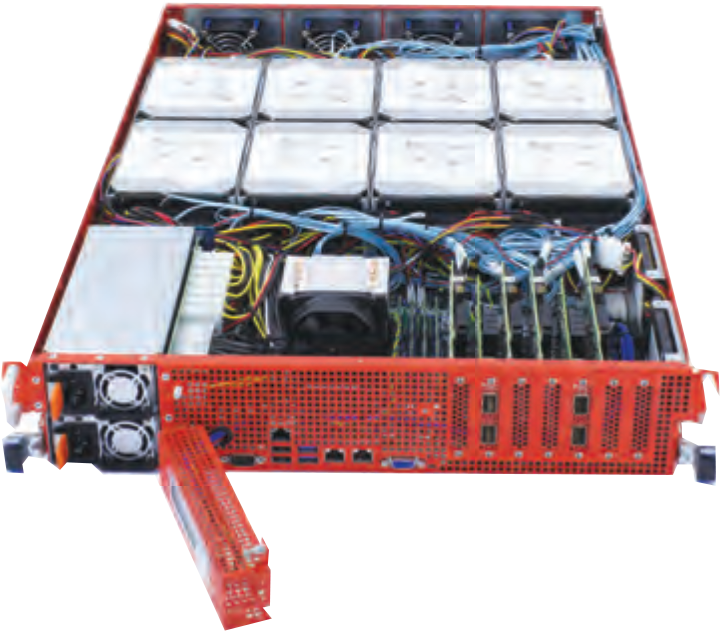

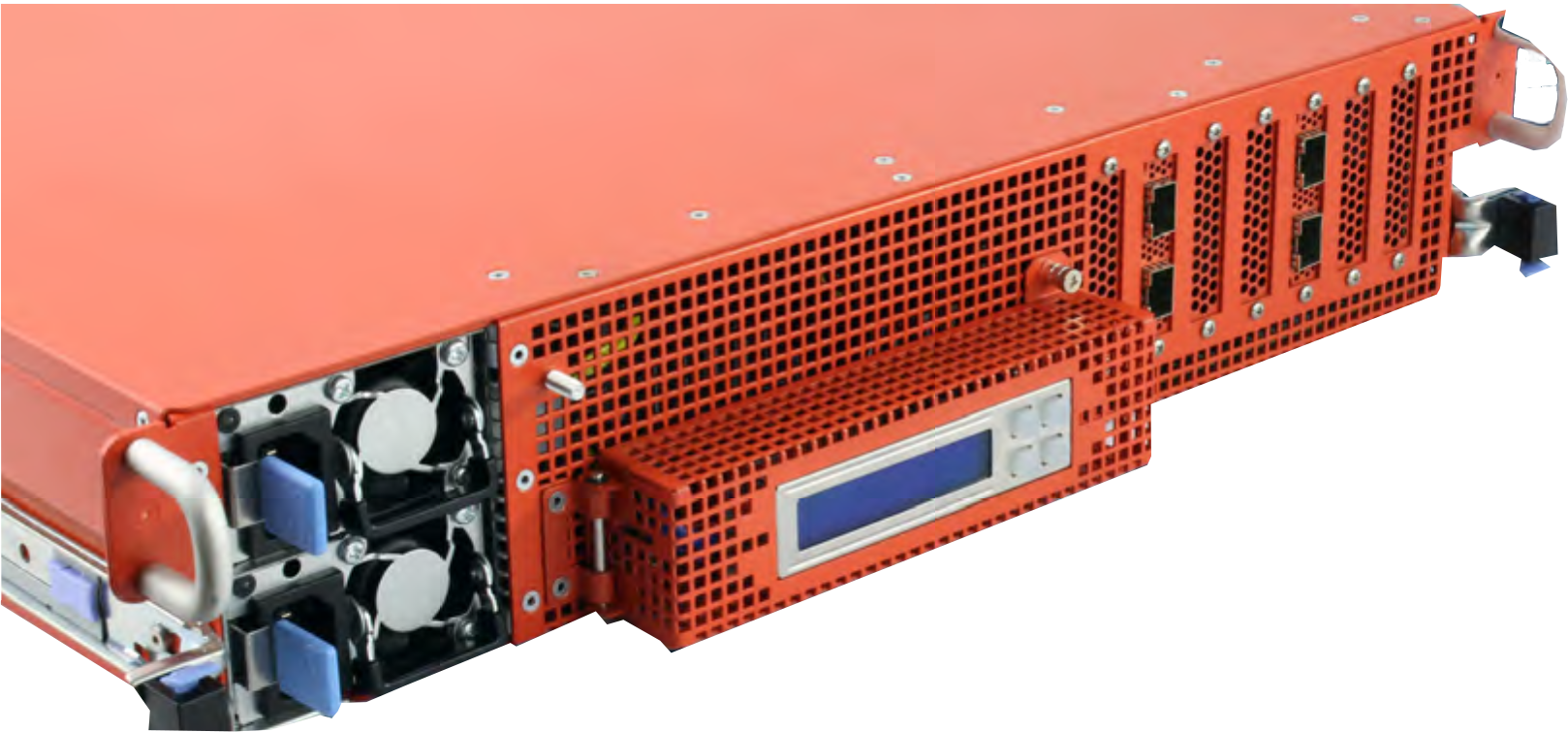

The Viking Enterprise Solutions (VES) NSS-2340 is Intel Xeon E5-2697v4 based system which offers up to 250TB of capacity with spinning LFF drives and SFF SSDs. It is designed to fit in a 2 post or 4 post rack, it can be deployed at edge points of the network for minimizing network load. The system operates in environment of up to 40°C. With it’s exceptional thermal management and drive rotation vibration mitigation, the platform is highly reliable. NSS-2340 supports AC and DC redundant supplies for maximum flexibility. It can operate indefinitely with a fail fan minimizing service. A simple LCD panel with button allows basic functionality without any KVM connection.
Datasheets
Features
- Exceptional thermal management and drive rotation vibration mitigation
- Highly reliable platform
- Can operate indefinitely with a fail fan minimizing service
| 2U Rackmount Enclosure | AC Power | Monitoring & Reporting | Environment Protection | Ethernet Connectivity | Drive Configuration |
|---|---|---|---|---|---|
| Dimensions: 30” L X 17.5” W X 3.5” H | Input Voltage: 90-264V AC 47-63 Hz | Standard IPMI interface | RoHS & WEEE compliant | Up to 120 Gb/s Ethernet connectivity via OCP & PCIe interface in dual server configuration | Up to 24 LFF drives |
| Weight for VES NSS-2340: 85 LBS | DC Input: 48V-60V DC 20A MAX | Up to 10 SFF SSD |
