Viking Technology


NAS Storage for Scale-out Implementation

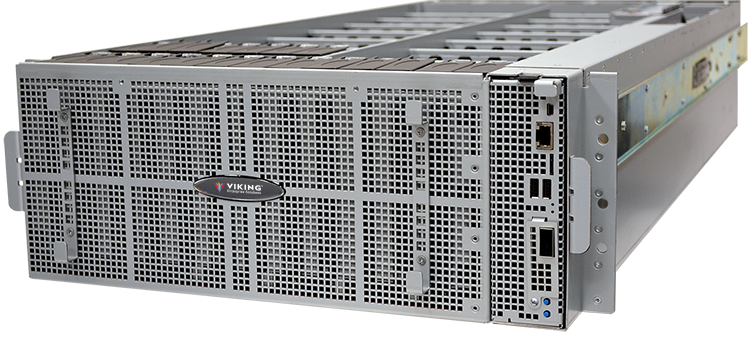

As Data storage capacity continues to expand at break-neck speed, increasingly customers are looking for a storage solution to meet cost competitive scale-out solutions. NSS-41000 is ideally designed to address the virtual storage architecture that is scalable and meet some of today’s most demanding requirements. The system can operate in free air environment, has the capacity of up to 1PB in 4U, yet designed to minimize power consumption.

NSS-41000 can be deployed in a private or public cloud and can be implemented with Erasure coding technologies or in RAIDed environment with dual socket E5-2600v4 processors.

The system has been designed to address tool-less service of all FRUs (field replaceable units). The system offers remote management capabilities of all features and can be monitored using IPMI2.0 compliant interface. Target device communication and management is enabled via standard serial ATA (SATA 3.0) protocol with enclosure services linked via SES firmware.

The NSS-41000 fits into an industry standard 19” wide / 47” deep rack.



  • Full-featured robust SATA 3.0 storage enclosure
  • Dual socket E5-2600v4 server with integrated storage architecture
  • Multiple Drive partitioning/split-bus zoning modes
  • Dual redundant high efficiency advanced power supplies & cooling modules
  • Standard chassis customization & branding available
Host Interfaces Redundant Hot-Swappable Components Firmware Drive Partitioning
One Haswell/Broadwell Server Two 1+1 redundant power supplies SCSI Enclosure Services (SES) 3.0 based firmware or, Additional zoning schemes can be developed upon request
Dual socket 1600 Watt IPMI 2.0 Baseboard Management Controller
Up to eight DDR4 DIMMS per socket 2A standby supply for lowest power consumption when idle Console events logged onto microSD card
Efficient power supplies Two independent AC power inlets

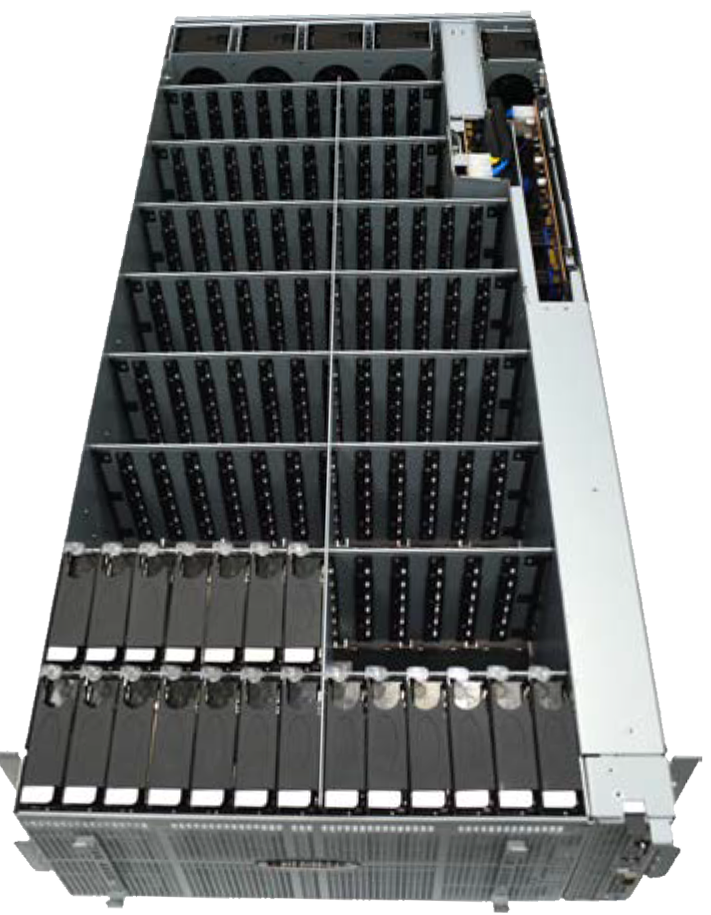

40GB networking Up to 100 Drives
Five fan modules
4U Rackmount Enclosure Failure Notifications Electromagnetic Emissions & Immunity Standards Disk Drives
Dimensions: 6.9 in. H x 17.2 in. W x 42.1 in. D (17.5 cm H x 42.9 cm W x 107.0 cm D) SCSI Enclosure Services (SES-3.0) over in-band interface CE Mark 100 independent point-to-point connections to each SATA disk drive
Weight with drives: 264 lbs (120 kg) max EN55022/EN61000 Class A Form factor: 3.5” SATA drives
Standard Rackmount Rail Kit with integrated cable management FCC Class A Rotational speeds up to 15K RPM – Interface: 6Gb/3Gb SATA
Canadian IECS-003 Tool-less HDD Carriers
Optional 2nd M.2 2280 size SATA or PCIe drive
AC Power Performance (EDFB) Capacity Safety Standards
Input voltage: 180-264V AC Up to 11GB/s sequential read 100 drive capacity per 4U enclosure UL 60950
Input frequency: 47-63 Hz Up to 10GB/s sequential write 1 PB total storage capacity CSA 22.2-950
Maximum system continuous DC output power rating: 1600 Watts
Quality Standards Environment Protection Operating Environment Non-Operating Environment Monitoring & Reporting
Manufactured under an ISO 9002 registered quality system RoHS and WEEE compliant Temperature: up to 45°C Temperature: -40° to 60°C Monitoring for temperature, advanced power & cooling modules including fan speed control, & disk drives as well as error rates & quality of service
Relative humidity: 20 to 80 percent (non-condensing) Relative humidity: 10% to 90% (noncondensing) IPMI reporting of all serial number, part number & revisions of each FRU & chassis
Altitude: -200 to 10,000 ft Altitude: -200 to 40,000 ft
Shock: 5G at 11ms, 1/2 sine wave pulse Shock: 10G at 11ms, 1/2 sine wave pulse
Vibration: 0.10G at 5Hz to 500Hz Vibration: 0.5G at 5Hz to 500Hz
Acoustics: 7.6 Bels at normal
