NSS-2247C

The Viking Enterprise Solutions (VES) NSS-2247C Ultra High Performance NVMe/PCIe Solid State Flash Array Quad Server combines twenty four (24) 2.5” NVMe drives with four dual socket Intel Xeon™ class Cascade Lake servers. The NSS-2247C provides ultra low latency access to the flash array while supporting up to 4 x 100Gb Ethernet connectivity. The NSS-2247C maps six NVMe drives and Hot Plug to the four servers to each.

Developed as high performance servers for tier one HPC, caching, and hyper-converged workloads requiring high I/O, high bandwidth and/or sub millisecond access latency in a small form factor.

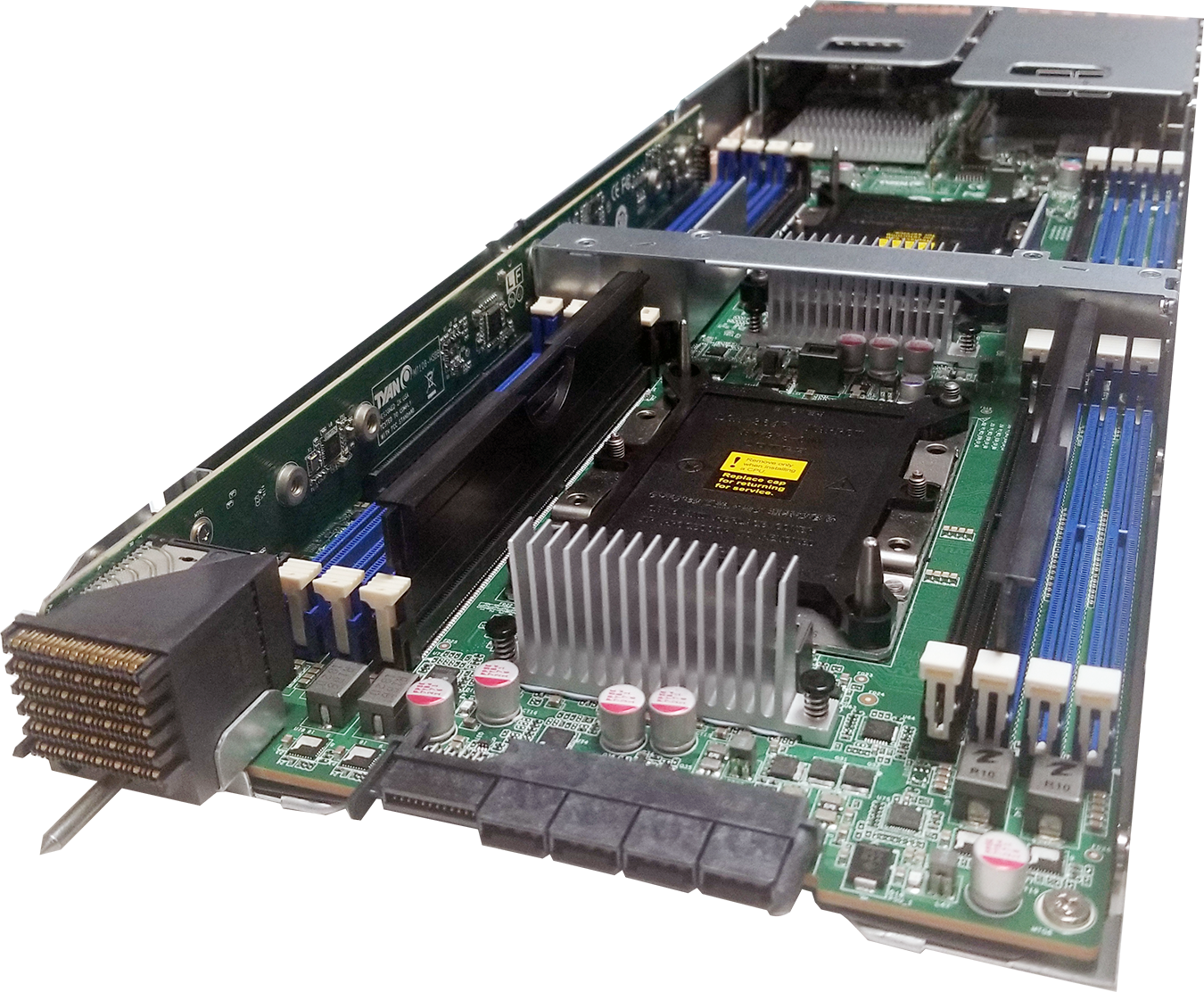

Quad Servers
Four dual socket servers provide extreme compute power in addition to ample back to back I/O connectivity

Hot Plug Functionality NVMe Drives
The NSS-2247C architecture supports drive Hot Plug without taking offline the unit or any of the other drives

Robust Enterprise-Grade Functionality
The NSS-2247C offers robust enterprise-grade availability, reliability and serviceability. For easy swap-out, field-replaceable units (FRUs), including fans, SSD drives, interposers, power supply units (PSUs) and server modules

PRODUCT BRIEF INQUIRY

Features

  • High Performance: Leverages the greater speed of PCIe v3/NVMe SSDs compared to SAS/SATA SSDs, with sub-millisecond access time in a 2U form factor. Provides up to 400Gb/s Ethernet connectivity.
2U Rackmount Enclosure Memory (per node) PCIe Expansion Slots (per node) Storage (per node) Monitoring & Reporting Network (per node) AC Power Hot-Plug Field Replaceable Units
Net weight: 67 lbs (8+8) DDR4 DIMM slots (6 memory channels per CPU) (1) HH/HL PCIe G3 x16 slot (6) hot-swap 2.5" U.2 NVMe drive bays Monitoring for temperature, power supplies & fans including fan RPM monitoring, SSDs & server units 1000 BaseT dedicated IPMI Port Input AC 200 - 240V 13 Amp 24 independent PCIe v3 NVMe SSDs with interposers & carrier
Height: 86.8mm Supporting up to 1,024GB RDIMM/LRDIMM 2666 memory (1) HH/HL PCIe G3 x8 slot (2) 2280/22110 NVMe M.2 ports (CPU 1 root ports 1A and 1B) PCIe v3 x16 OCP v2.0 LAN Mezzanine Type 1 slot 1+1 redundant 2200W power supply units
Width: 443.8mm 4 hot-swappable server modules
Depth: 860mm (33.8") 4 8086 hot-swap fans
Drive Configuration Safety Standards Environmental Protection Monitoring & Reporting
Four groups of six drives (default for most balanced affinity) IEC/EN 60950-1 CB/LVD RoHS 6/6 compliant Monitoring for temperature, power and cooling drives
Flexible Configuration: Single port (PCIe x4)/dual port (2x PCIe x2) NVMe drive support
