NDS2402

2U Hybrid Edge and CDN Platform

The Viking Enterprise Solutions (VES) NDS2402 is an AMD EPYC™ (up to 64-core, 225W TDP) based system which offers up to 24, 3.5” spinning drives and eight PCIe Gen 3 or PCIe Gen 4 U.2 NVMe SSDs.

NDS2402-Hero-View
NDS2402-Iso-Front
NDS2402-Exploded-Front
NDS2402-Iso-Rear-Display-Shown
NDS2402-Iso-Rear-Display-Folded-Down
NDS2402-Special-Rear-View

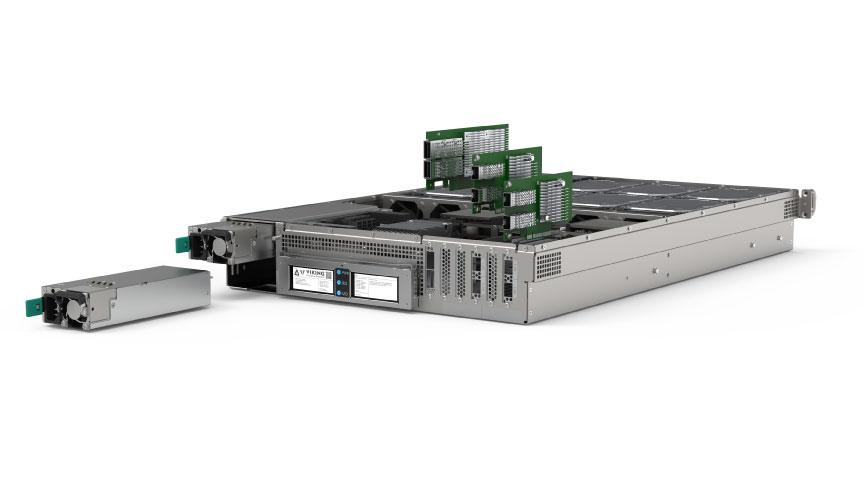

NDS2402-Exploded-Rear
NDS2402-Direct-Rear
previous arrow
next arrow
NDS2402-Hero-View
NDS2402-Iso-Front
NDS2402-Exploded-Front
NDS2402-Iso-Rear-Display-Shown
NDS2402-Iso-Rear-Display-Folded-Down
NDS2402-Special-Rear-View
NDS2402-Exploded-Rear
NDS2402-Direct-Rear
previous arrow
next arrow

It is designed to fit in a 2 post or 4 post rack, it can be deployed at edge points of the network for minimizing network load. The system operates in environment of up to 40°C. With its exceptional thermal management, the platform is highly reliable. NDS2402 supports AC and DC redundant supplies for maximum flexibility. It can operate indefinitely with a single fan fail minimizing service. A simple eInk display panel with four button (including power and reset) allows basic functionality without any KVM connection.

FEATURES

  • Exceptional thermal management and drive rotation vibration mitigation
  • Highly reliable platform
  • Can operate indefinitely with a single fan fail minimizing service
  • Optional TPM and intrusion protection
  • Dual port, 100GbE PCIe card
  • Quad port, 10GbE PCIe cards
  • All PCIe slots Gen 4
2U RACKMOUNT ENCLOSURE AC POWER MONITORING & REPORTING SAFETY STANDARDS ENVIRONMENT PROTECTION DRIVE CONFIGURATION ETHERNET CONNECTIVITY COMPUTE
DC Input: 48V-60V DC 20A MAX Input Voltage: 100-240V AC 50/60 Hz 1GbE data center connection for management IEC/EN UL/CSA 60950-1 2nd Edition RoHS & WEEE compliant Single NVMe M.2 SSD (2280/2210) Dual port 100GbE PCIe card + Quad port 10 GbE PCIe card 8x DDR4 3200MT/s DIMMs, up to 1 TB
Weight 85 LBS NEBS Level 1 Compliant 3 x 1GbE, 2 x USB 3.0, 1 x VGA, 1 x TPM header
Optional 1 x8 PCIe Gen 4 half-height, half-length expansion card



NDS2402

NDS2402: an AMD EPYC™ based system which offers up to 24, 3.5” spinning drives and eight SSDs.
