VSS2320 – Advanced Enterprise Storage Server

2U 32-Bay NVMe PCIe 5.0 High Availability Shared Storage Server
Ultra Fast 2U Storage Server Using Gen 5 PCIe NVMe and AMD EPYC™ Genoa CPUs with High Availability while Maximizing Performance and Density.

VSS2320 Product-PC100660A
VSS2320 Product-PC100662A

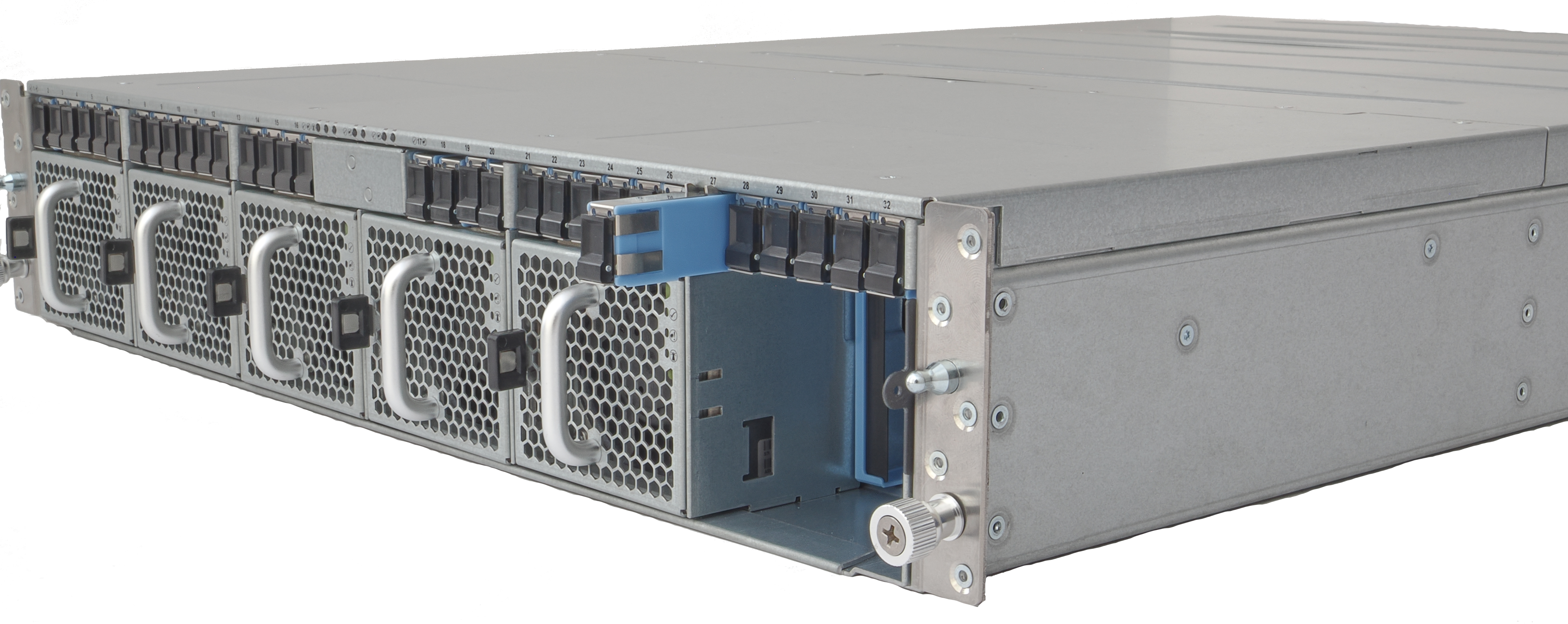

VSS2320 Product-PC100667A
VSS2320 Product-PC100685A

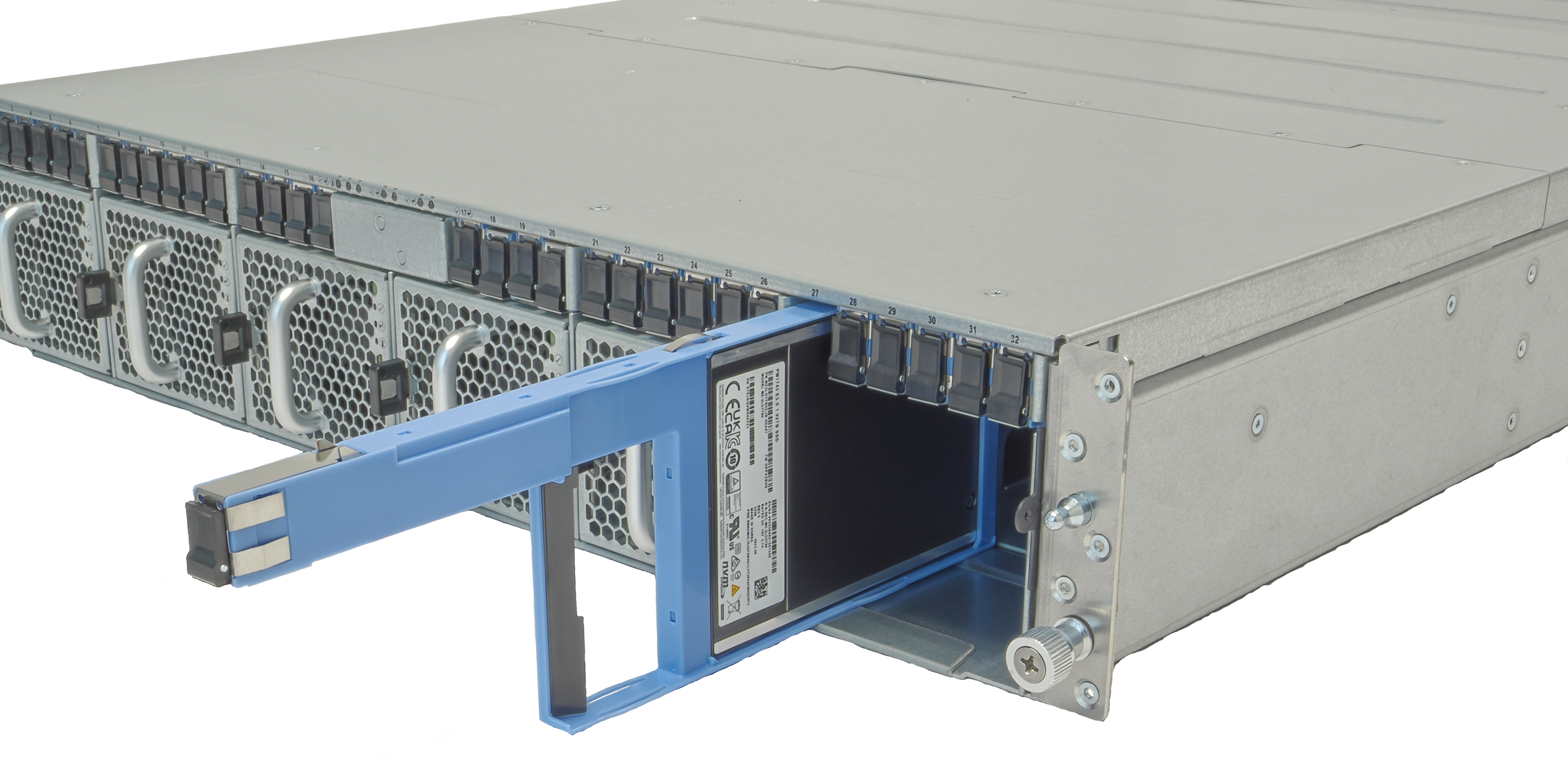

VSS2320 Product-PC100690A
VSS2320 Product-PC100695A
VSS2320 Product-PC130747
VSS2320 Product-PC130764
VSS2320 Product-PC160804
VSS2320 Product-PC160806
previous arrow
next arrow
VSS2320 Product-PC100660A
VSS2320 Product-PC100662A
VSS2320 Product-PC100667A
VSS2320 Product-PC100685A
VSS2320 Product-PC100690A
VSS2320 Product-PC100695A
VSS2320 Product-PC130747
VSS2320 Product-PC130764
VSS2320 Product-PC160804
VSS2320 Product-PC160806
previous arrow
next arrow

The Viking Enterprise Solutions (VES) VSS2320 Storage Server offers 32 EDSFF E3.S SSDs utilizing the PCIe Gen 5 NVMe interface combined with two server modules equipped with AMD EPYC Genoa CPUs. Each server has access to all 32 NVMe drives. The VSS2320 is a dense high availability solution that provides the ultimate storage performance in a small package.

The enclosure contains two hot swappable server modules. Each of the server modules includes an AMD EPYC™ Genoa CPU, with 4x HHHL x16 PCIe Gen5 slots that supports Gen 5 PCIe add-in cards and up to 12 DIMMs channels. The VSS2320 fits into an industry standard 19-inch 1.0-meter deep rack with. The storage server’s flexible configuration supporting allows it to be deployed in a variety of applications. This extremely fast 2U storage server supports 128 PCIe lanes to the drives and network, delivering a non-blocking architecture.

The VSS2320 alleviates job pipeline congestion, a common limitation caused by I/O bottlenecks in many high-performance applications including:

The VSS2302 flexible configuration is designed and optimized for:

  • Enterprise Applications
  • Data Center
  • Hyperscale / Hyperconverged
  • Software-defined Storage
  • Data Warehousing

VSS2320 Highlights

  • Ultra-performance and high availability solution that provides performance required for the most demanding applications
    • Blazing-fast read speeds of 495GB/s and write speeds of 195GB/s
  • Supports 32 x EDSFF E3.S form factor drives
  • Capacity optimized with up to 1.92PB in a 2U form factor

VSS2320 Features

  • Dimensions: 3.44 in. H X 17.52 in. W X 30.73 in. D (87 mm H X 445 mm W X 780 mm D)
  • Latest AMD CPU technology provides 128 Gen 5 PCIe lanes per CPU and 32 hot-pluggable Gen 5 PCIe NVMe SSDs
  • High availability system, each server accessing all drives
  • Management interface for drive access and provisioning
  • Hot-pluggable servers, power supplies, fans, and drives
  • Up to 32 EDSFF E3.S SSDs utilizing PCIe and NVMe protocols
  • Environmental operation up to 35°C ambient inlet
  • Standard chassis customization and branding available
  • Optional TPM (trusted platform module)

VSS2320 Specifications

AC Power Hot-swappable Components Firmware 2U Enclosure
  • Nominal input range: 200-240V AC
  • Input frequency: 50-60 Hz
  • Power source: dual redundant 2600W
  • Input current: 15 A max @ 180V AC per PSU
  • Inrush current: 40 A peak per PSU

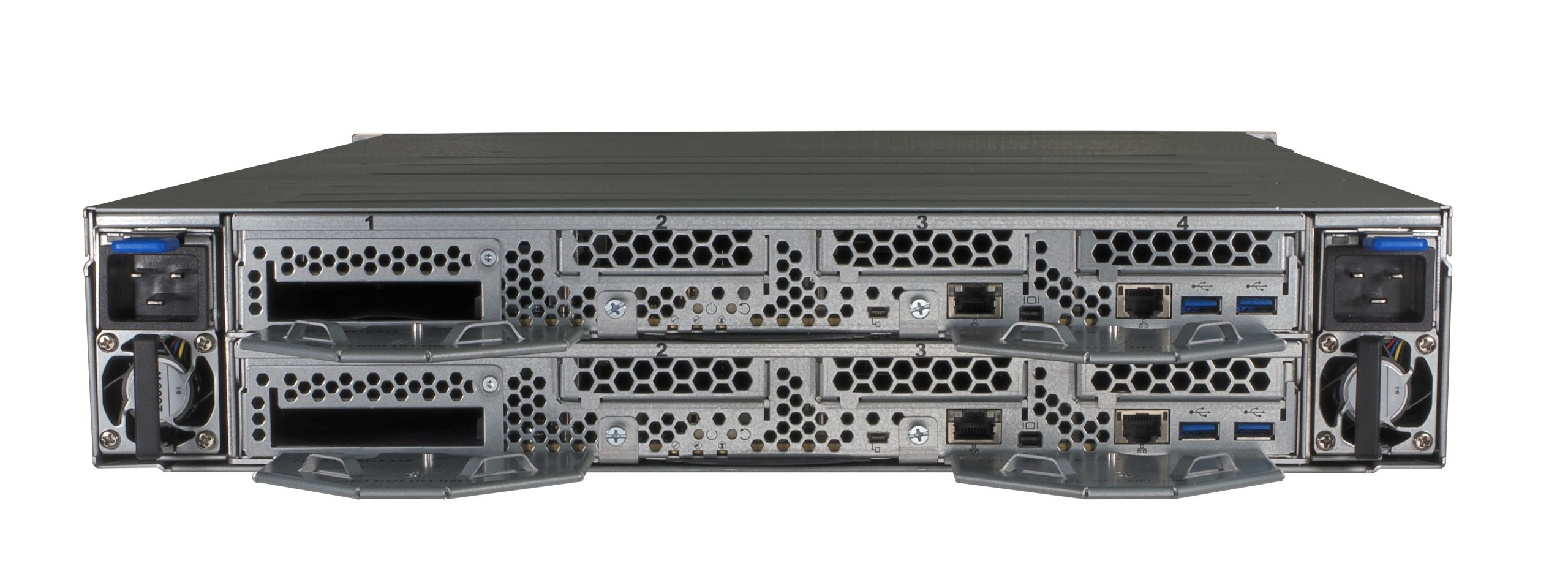

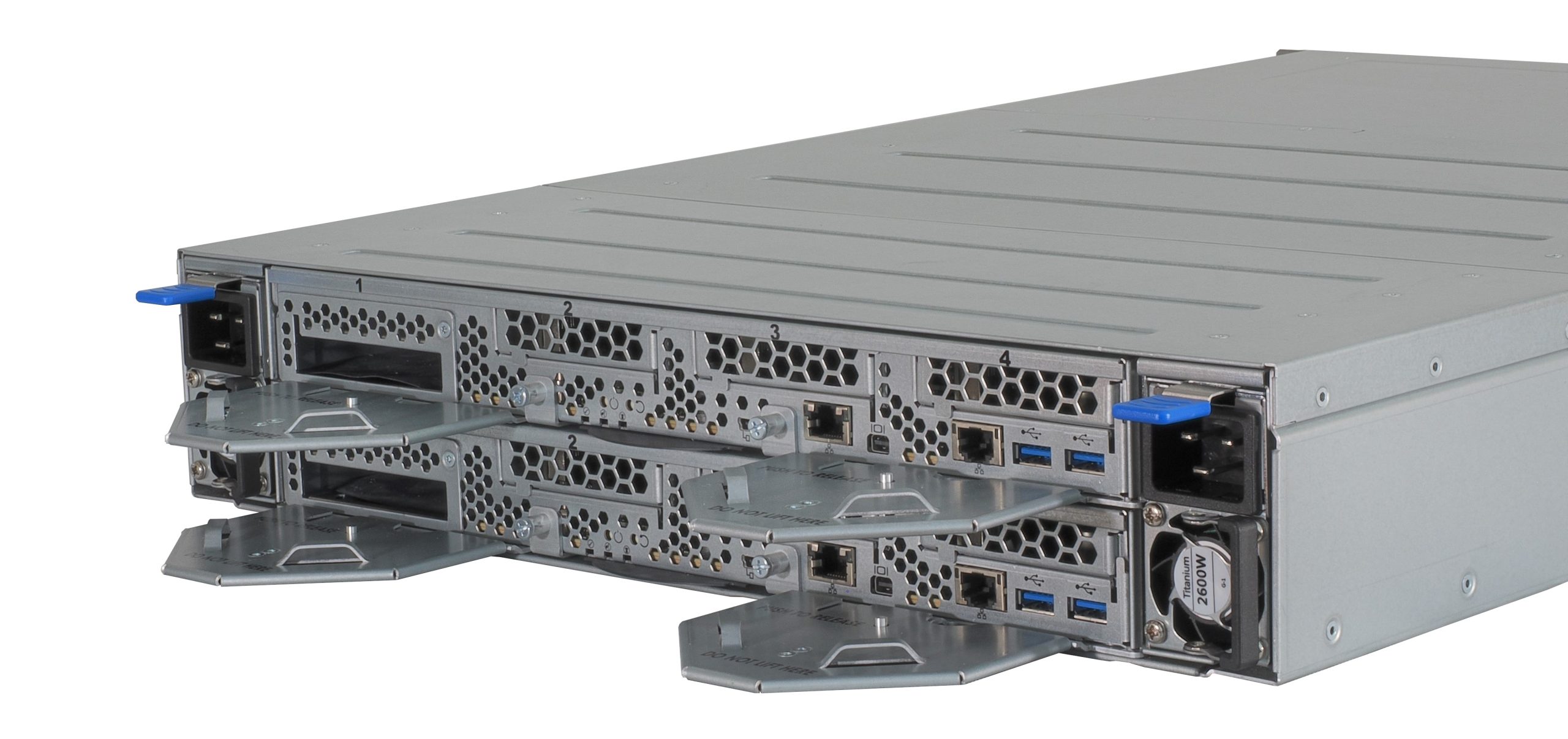

  • Two server modules

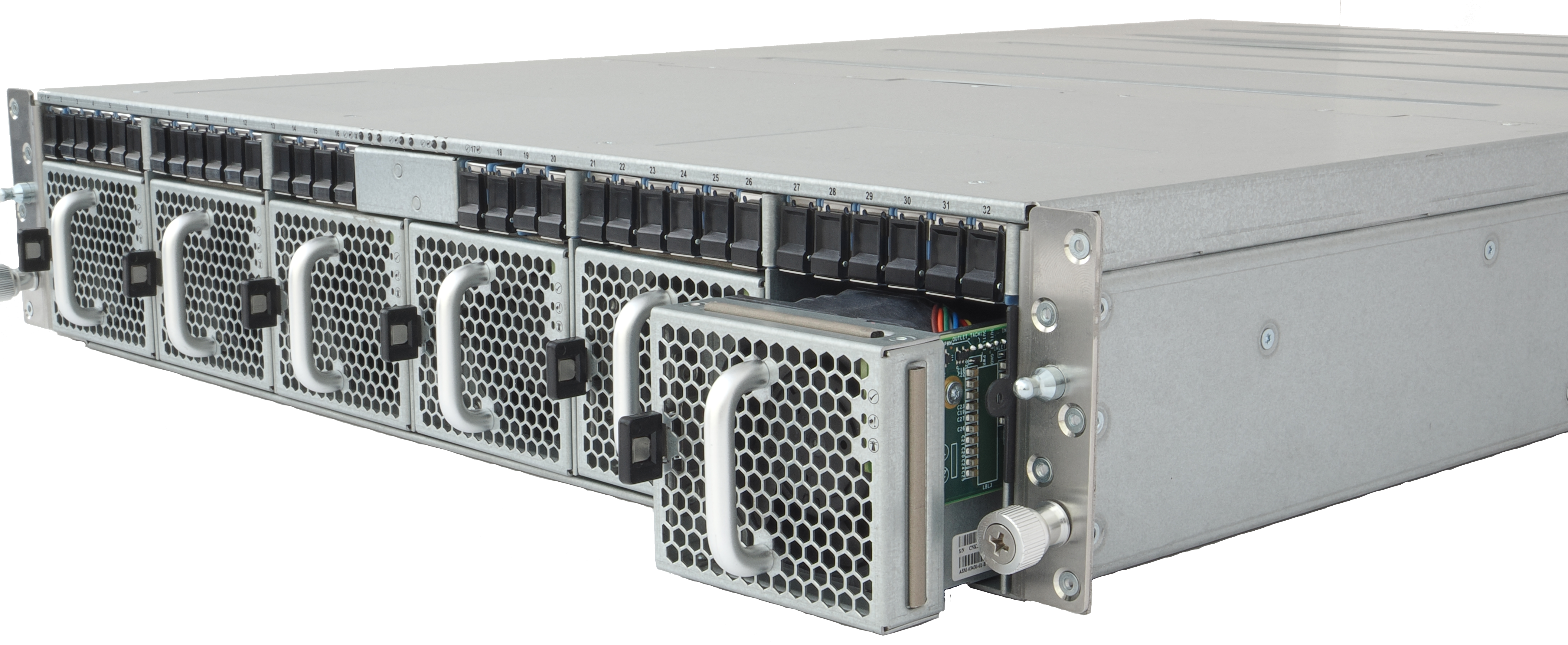

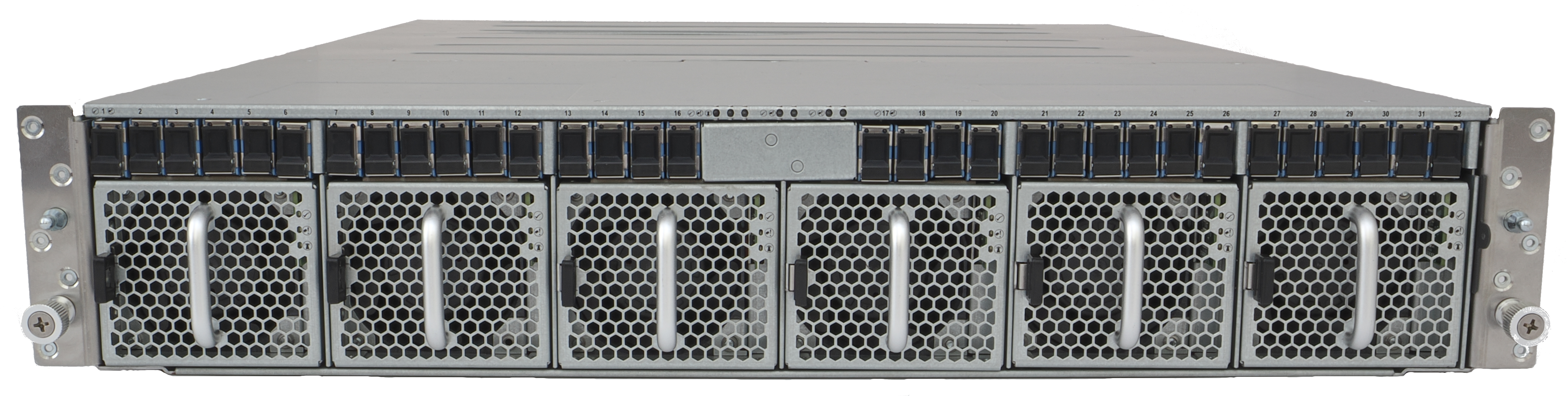

  • Six fans (5+1 redundant)

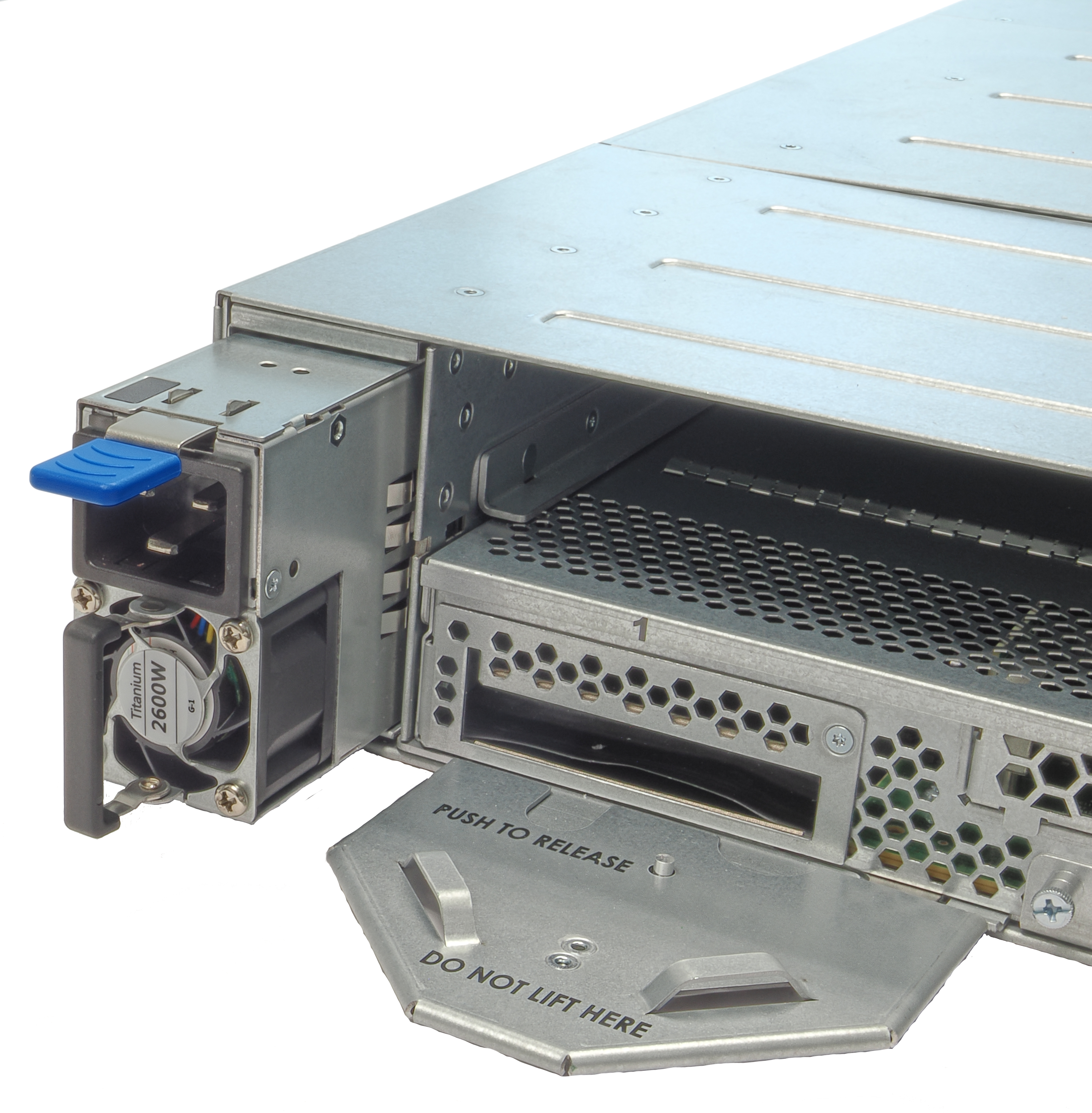

  • Two AC to DC 2600W power modules
  • Two independent AC power inputs

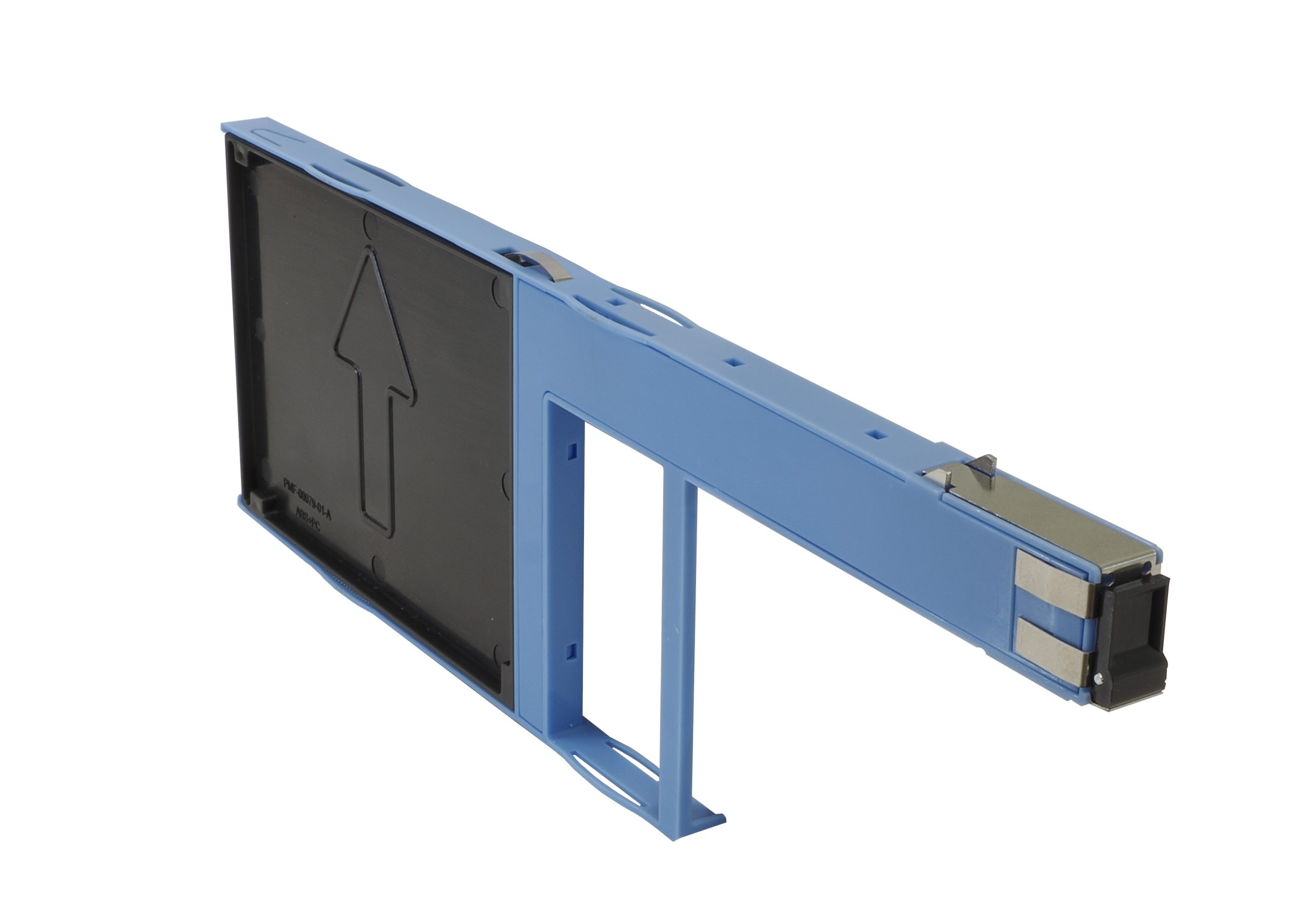

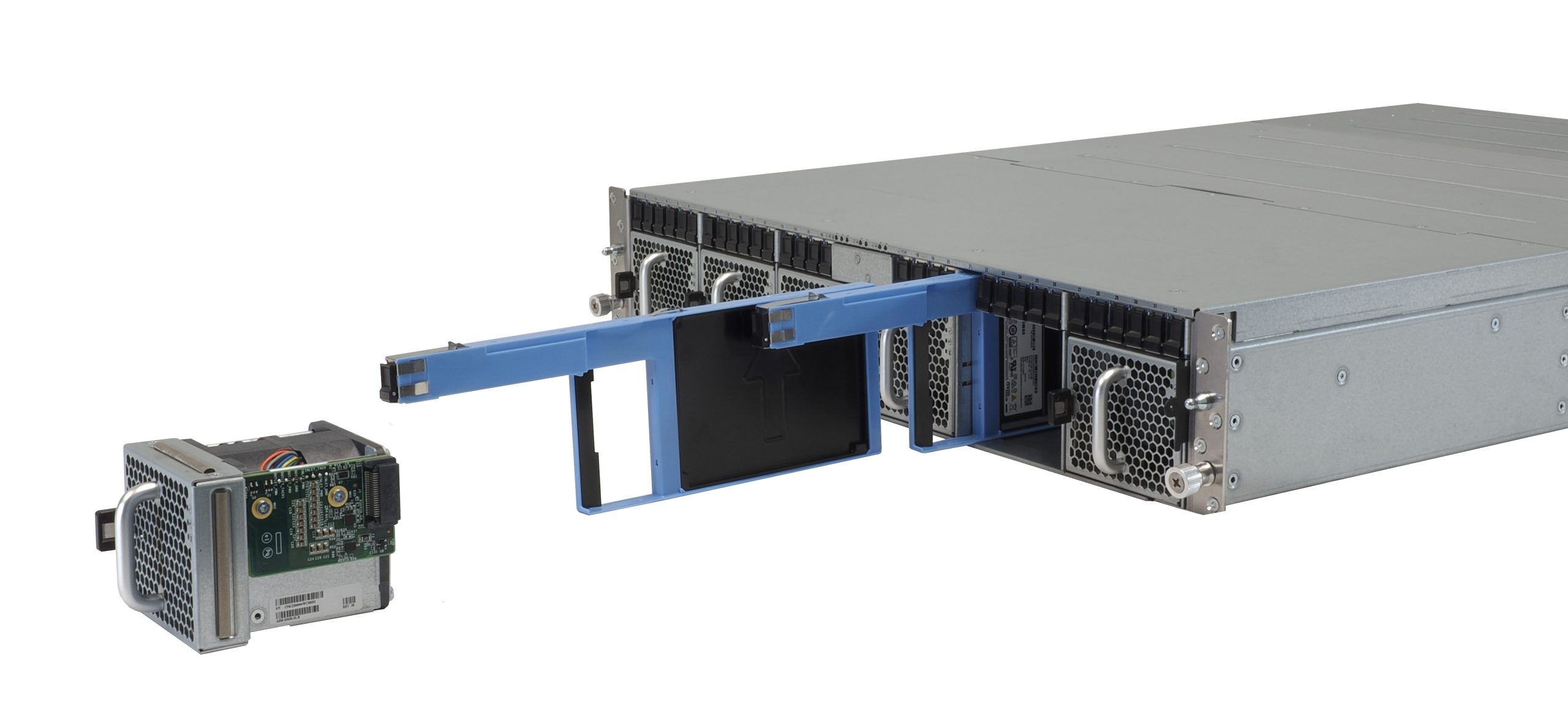

  • x32 EDSFF E3.S SSDs (hot pluggable)
  • OpenBMC – IPMI and Redfish (R) management
  • CLI and GUI control for drive management & status of the enclosure
  • 10G/1GbE Shared Host / Management Port
  • 1GbE Dedicated Management Port
  • Dimensions: 3.44 in. H X 17.52 in. W X 30.73 in. D (87 mm H X 445 mm W X 780 mm D)
  • Weight with drives and rail kit: 67 lbs (30.4 kg) max
  • Optional TPM (trusted platform module)



Failure Notifications Operating Environment Non Operating Environment Drive Partitioning Performance
  • Status LEDs for the enclosure, drives, servers, and fans
  • Temperature: 5°C to 35°C
  • Relative humidity: 20% to 80% (non-condensing)
  • Altitude: -200 ft to 10,000 ft
  • Shock: 5G at 11ms, 1/2 sine wave pulse
  • Vibration: 0.10G at 5 Hz to 500 Hz
  • Temperature: -40°C to 60°C
  • Relative humidity: 10% to 90% (non-condensing)
  • Altitude: -200 ft to 40,000 ft
  • Shock: 10G at 11ms, half sine wave pulse
  • Vibration: 0.5G at 5 Hz to 500 Hz
  • Management software controls the visibility and access to each drive
  • Drives may be mapped to either or both servers
  • 32-drive capacity utilizing Gen 5 PCIe & NVMe technology
  • Dual port drive support
  • Up to 25W per drive



Safety Standards Servers Electromagnetic Emissions & Immunity Standards Monitoring & Reporting Quality Standards
  • IEC 62368 -1:2018
  • 4th Generation AMD EPYC™ processors
  • 12x DDR5 RDIMMs up to 3TB of memory

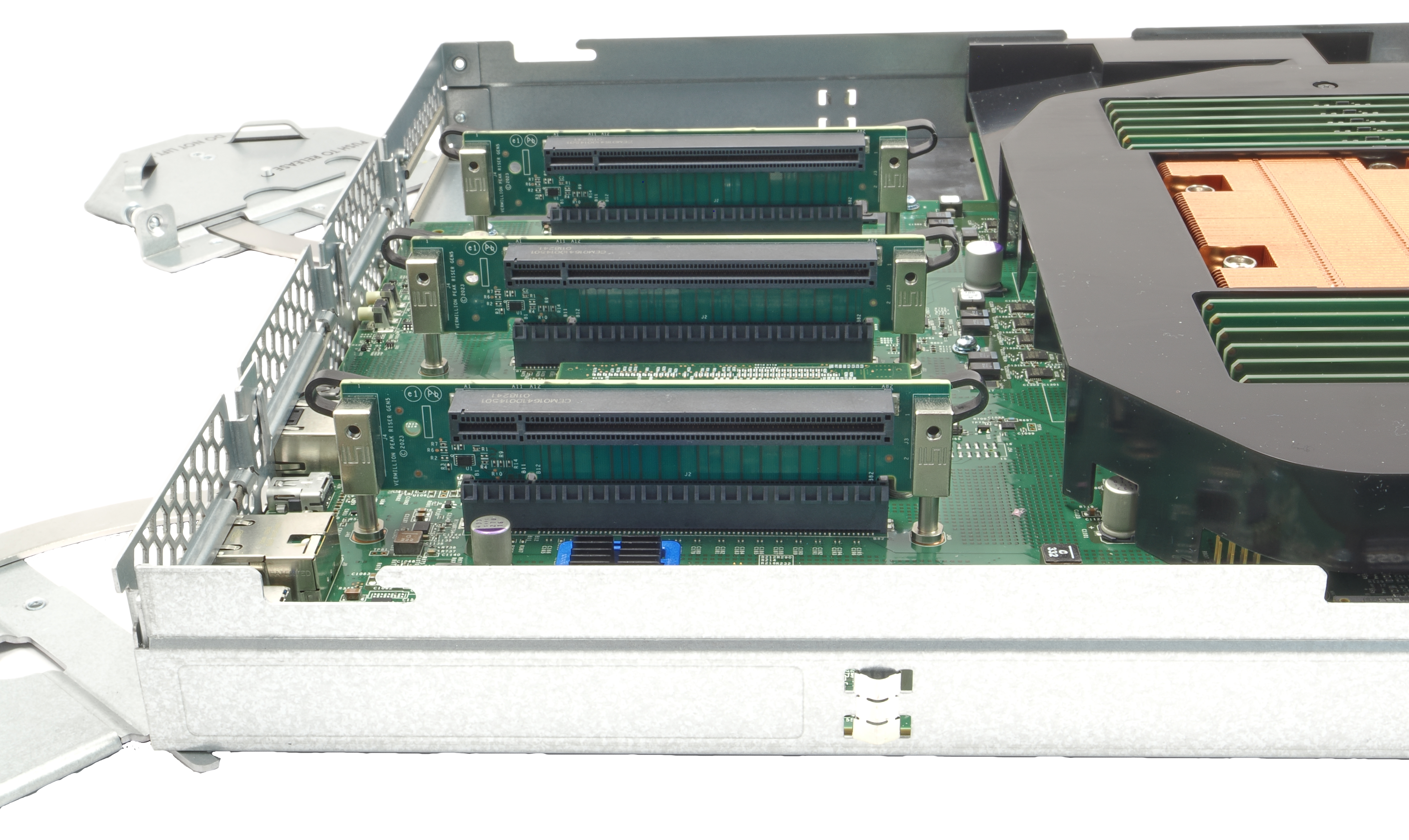

  • 4x PCIe HHHL x16 Gen 5 Add-In-Cards
  • Highly available system
  • Each CPU sees all 32 drives
  • Each drive is dual ported and connected to each server module
  • CNS 15936:2016
  • EN 55035:2017+A11:2020
  • VCCI- CISPR 32:2016
  • EN55032:2015+A11:2020
  • FCC Part 15 Subpart B:2023
  • ICES-003 Issue 7
  • Monitors temperature, power, cooling (including fan speed control), drives, as well as error rates and quality of service
  • Reporting of all serial number, part number, and revisions of the server modules, power supplies, drives & chassis
  • Manufactured under an ISO 9002 registered quality system



VSS2320

VSS2320: 2U 32 NVMe PCIe 5.0 High Availability Shared Storage Server.
