NDS4603

High Density, 60 LFF drives, High Availability JBOD
The Viking Enterprise Solutions (VES) NDS4603 is an SBB-like, high density JBOD with 60 3.5″ hard disk (HDDs) with 12Gb/s SAS with two active 12 Gb/s I/O Modules.

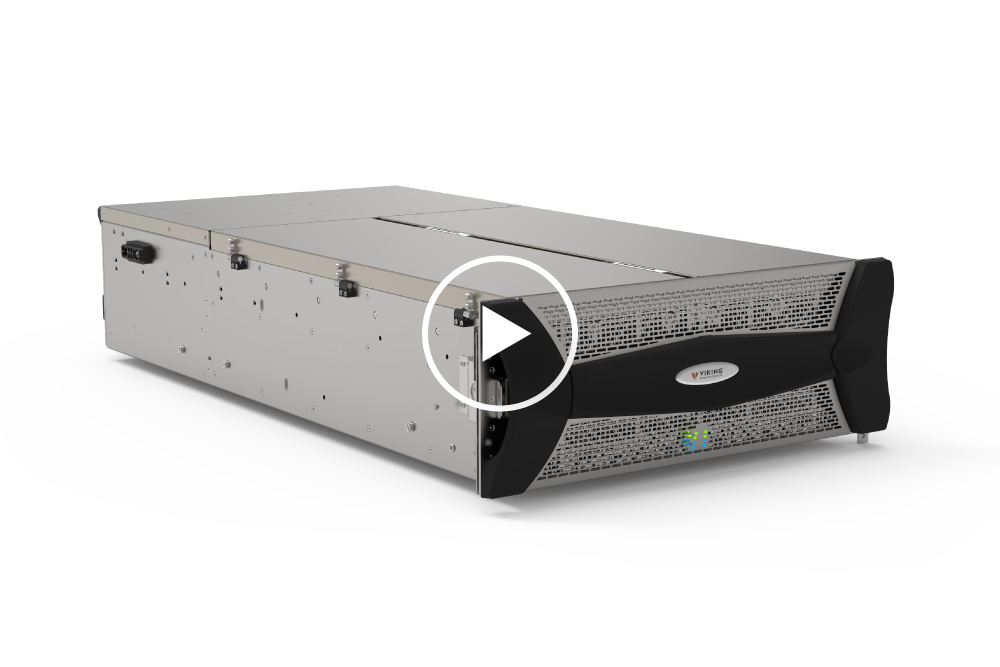

NDS4602-front-iso

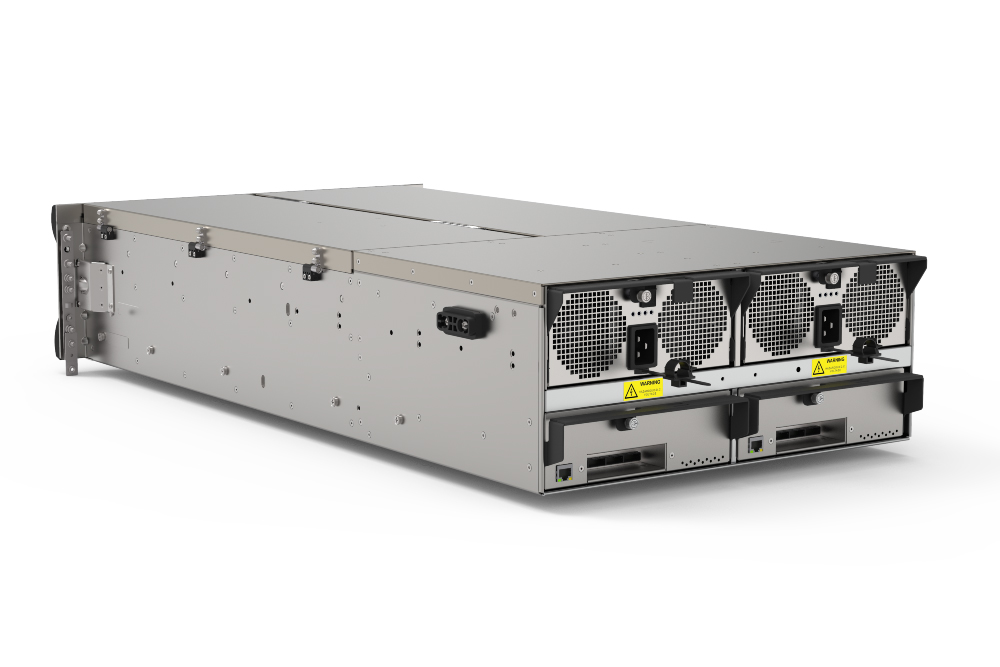

NDS4602-rear-iso

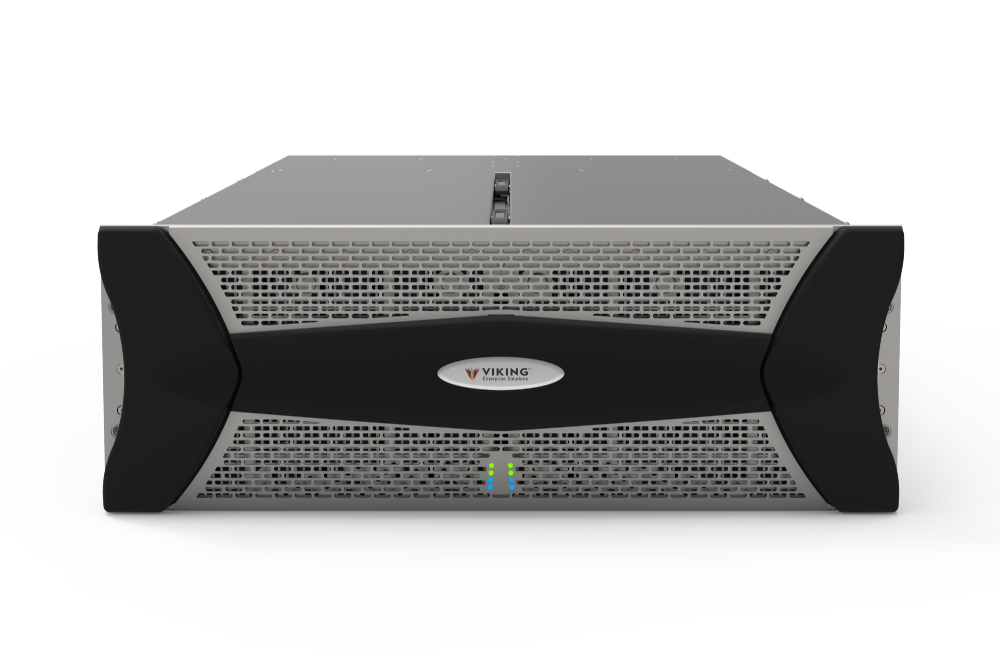

NDS4602-hero-view

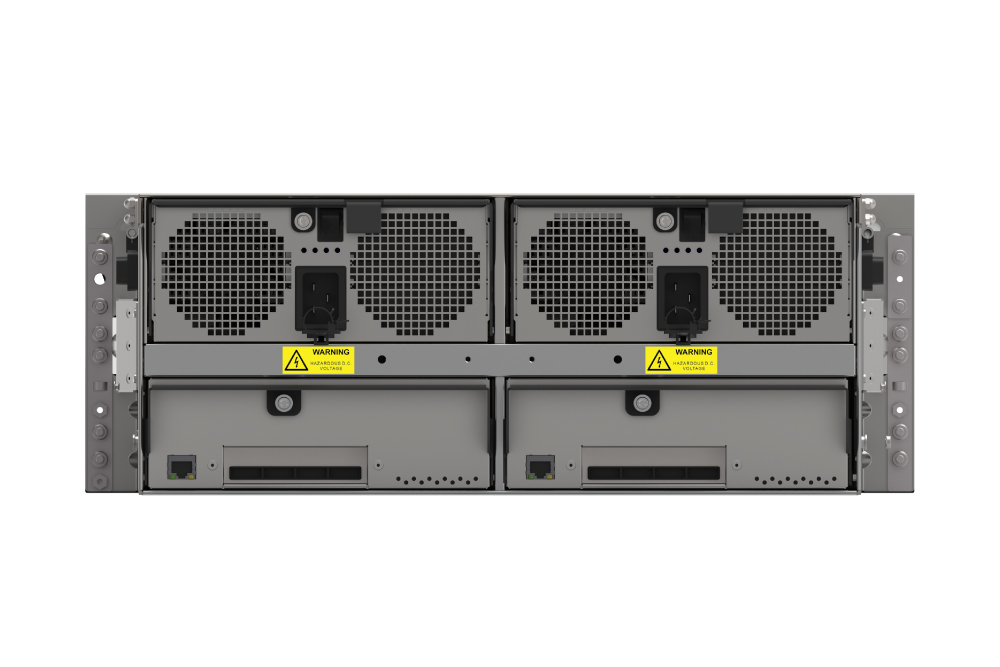

NDS4602-rear-direct
NDS4602-rear-exploded-full-out
NDS4602-exploded-front
NDS4602-front-iso_play
previous arrow
next arrow
NDS4602-front-iso
NDS4602-rear-iso
NDS4602-hero-view
NDS4602-rear-direct
NDS4602-rear-exploded-full-out
NDS4602-exploded-front
NDS4602-front-iso_play
previous arrow
next arrow
Today’s business environment requires simple, easy ways to grow capacity as well as providing performance and scalability on demand. The Viking Enterprise Solutions (VES) NDS4603 High Density Storage Enclosure enables 3.5” or 2.5” SAS/SATA hard disk drive (HDD) and solid state disk (SSD) device connections in a mixed environment. Target device communication and management is enabled via standard serial attached SCSI (SAS 3.0) protocol with enclosure services linked via SES firmware.

The VES NDS4603 Storage Enclosure offers best-in-class performance and capacity, space-saving density, “green” energy efficiency and 24×7 high-availability redundancy of key components.

The NDS4603 fits into an industry standard 19” rack / 1 meter rack. Its flexible configuration allows it to be deployed in a variety of applications.

FEATURES

  • Full-featured robust 12Gb/sec high-performance SAS 3.0 storage enclosure
  • Operation with either single I/O controller or dual I/O controllers for redundant failover
  • Multiple Drive partitioning/split-bus zoning modes
  • Hot-pluggable I/O controller(s) & dual redundant high efficiency advanced supplies
  • SFF-8644 12Gb/sec SAS 3.0 host & expansion ports or expansion of up to 100Gb/s network interface
  • Flexibility to choose SAS or SATA drives to achieve the right performance, reliability & price
  • Modular design increases product configuration flexibility
  • Standard chassis customization & branding available
  • SAS point-to-point connectivity isolates drive failures, increasing reliability & fault tolerance & improving performance
  • SAS daisy-chain expansion to additional storage arrays & other SFF-8644 SAS compliant host/expansion ports
HOST/EXPANSION INTERFACES CAPACITY REDUNDANT HOT-SWAPPABLE COMPONENTS FIRMWARE 4U RACKMOUNT ENCLOSURE FAILURE NOTIFICATIONS
One or two VES SAS 3.0 I/ I/O controller modules per system, with each I/O module supporting 5x 12Gb/sec SAS 3.0 SFF-8644 ports 60 drive capacity per 4U enclosure Up to two SAS 3.0 JBOD I/O controller modules SCSI Enclosure Services (SES) 3.0 based firmware Dimensions: 7.0 in. H x 16.6 in. W x 34 in. D (17.7 cm H x 40.1 cm W x 864.0 cm D) SCSI Enclosure Services (SES-3.0) over in-band interface & via LEDs
Two AC power supplies Weight with drives: 220 lbs (100 kg) max
Two Regulator modules to provide hard drive power Standard Rackmount Rail Kit with integrated cable management
Two independent AC power inlets
Up to 60 Drives
Two Supercap/Battery modules



 DISK DRIVES AC POWER DRIVE PARTITIONING/SPLIT-BUS ZONING MONITORING AND REPORTING PERFORMANCE OPERATING ENVIRONMENT
60 independent point-to-point connections to each SAS or SATA disk drive with dual-port access & failover by each controller to each drive Input voltage: 180-264V AC Controller module can be zoned in four pre-defined zoning schemes Monitoring for temperature, advanced power & cooling modules including fan speed control, disk drives & I/O module(s), as well as error rates & quality of service Up to 48 GB/s (sustained reads) using 12 Gb/s SSD drives Temperature: 5° to 35°C
Form factor: 3.5” & 2.5” SAS, SATA & SSD drives Input frequency: 47-63 Hz Additional zoning schemes can be developed upon request In-band reporting of all serial number, part number, & revisions of each FRU & chassis Up to 38 GB/s (sustained reads) using 6 Gb/s SSD drives & EDFB Relative humidity: 20% to 80% (non-condensing
Rotational speeds up to 15K RPM Input current: 20.0 Amps max @ 230VAC Altitude: -200 to 10,000 feet
Interface: 12Gb/6Gb/3Gb SAS; 6Gb/3Gb SATA Maximum system continuous DC output power rating: 2900 Watts – Reduced power at low line voltages Shock: 3G at 11ms, 1/2 sine wave pulse
Vibration: 0.10G at 5 Hz to 500 Hz
Acoustics: TBD Bels at normal operation tested to ISO7779



I/O CONTROLLER MODELS NON-OPERATING ENVIRONMENT ELECTROMAGNETIC EMISSIONS & IMMUNITY STANDARDS SAFETY STANDARDS QUALITY STANDARDS ENVIRONMENT PROTECTION
NSS-4602-JS Model: Single Controller 12Gb/sec SAS 3.0 JBOD I/O controller module with support for storage expansion Temperature: -40° to 60°C CE Mark UL 60950 Manufactured under an ISO 9002 registered quality system RoHS & WEEE compliant
NSS-4602-JD Model: Dual redundant 12Gb/sec SAS 3.0 JBOD I/O modules, each with support for storage expansion enclosures Relative humidity: 10% to 90% (non-condensing) EN55022/EN61000 Class A CSA 22.2-950
Altitude: -200 to 40,000 ft FCC Class A IEC/EN/UL/CSA 60950-1, 2nd Edition
Shock: 10G at 11ms, 1/2 sine wave pulse Canadian IECS-003
Vibration: 0.5G at 5Hz to 500Hz



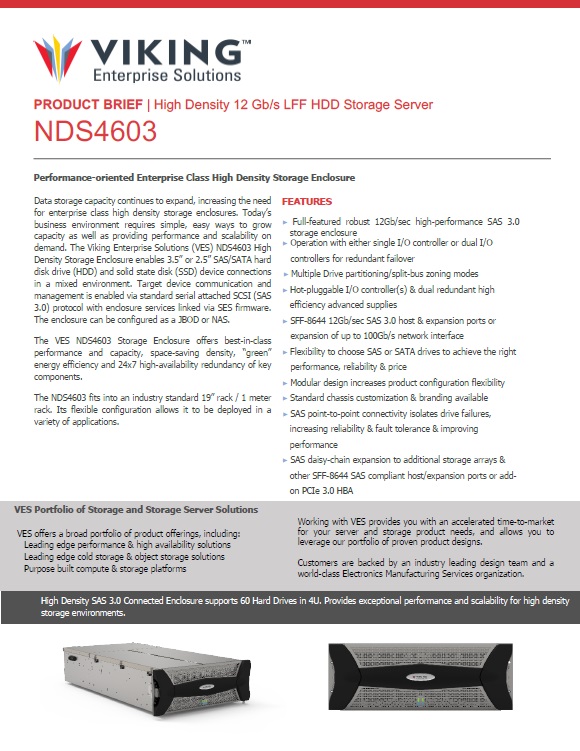

NDS4603

NDS4603: High Density Storage enclosure enables 60, 3.5” or mix of 2.5” SAS/SATA HDD and SSD drives.
