VSS2249R

The Viking Enterprise Solutions (VES) VSS2249R storage server offers 24 2.5” PCIe v4.0 NVMe drives (U.2) combined with two server modules.
VSS2249R hero view
VSS2249R hero view
VSS2249R rear direct
VSS2249R front iso

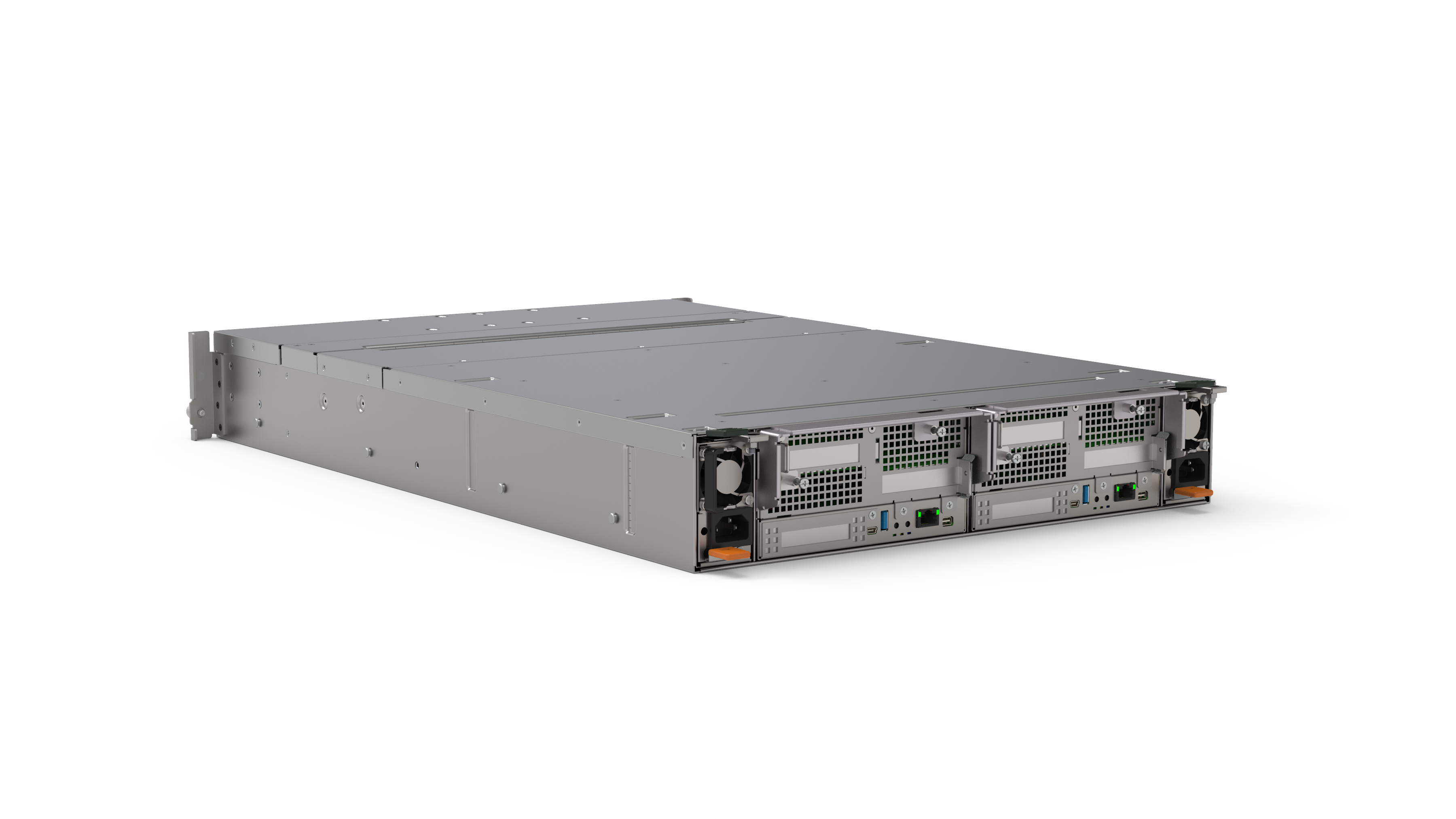

VSS2249R rear iso

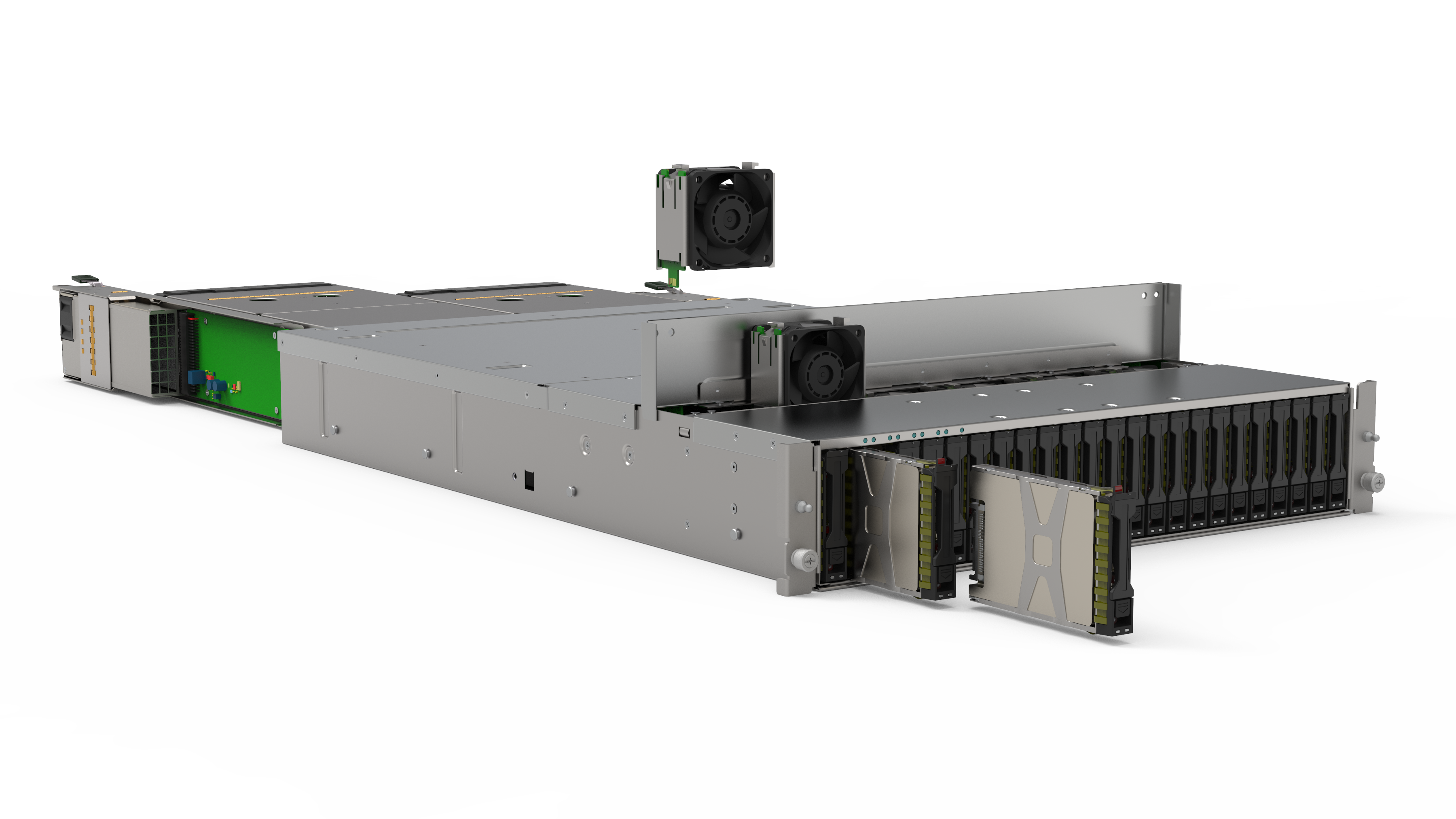

VSS2249R exploded front iso

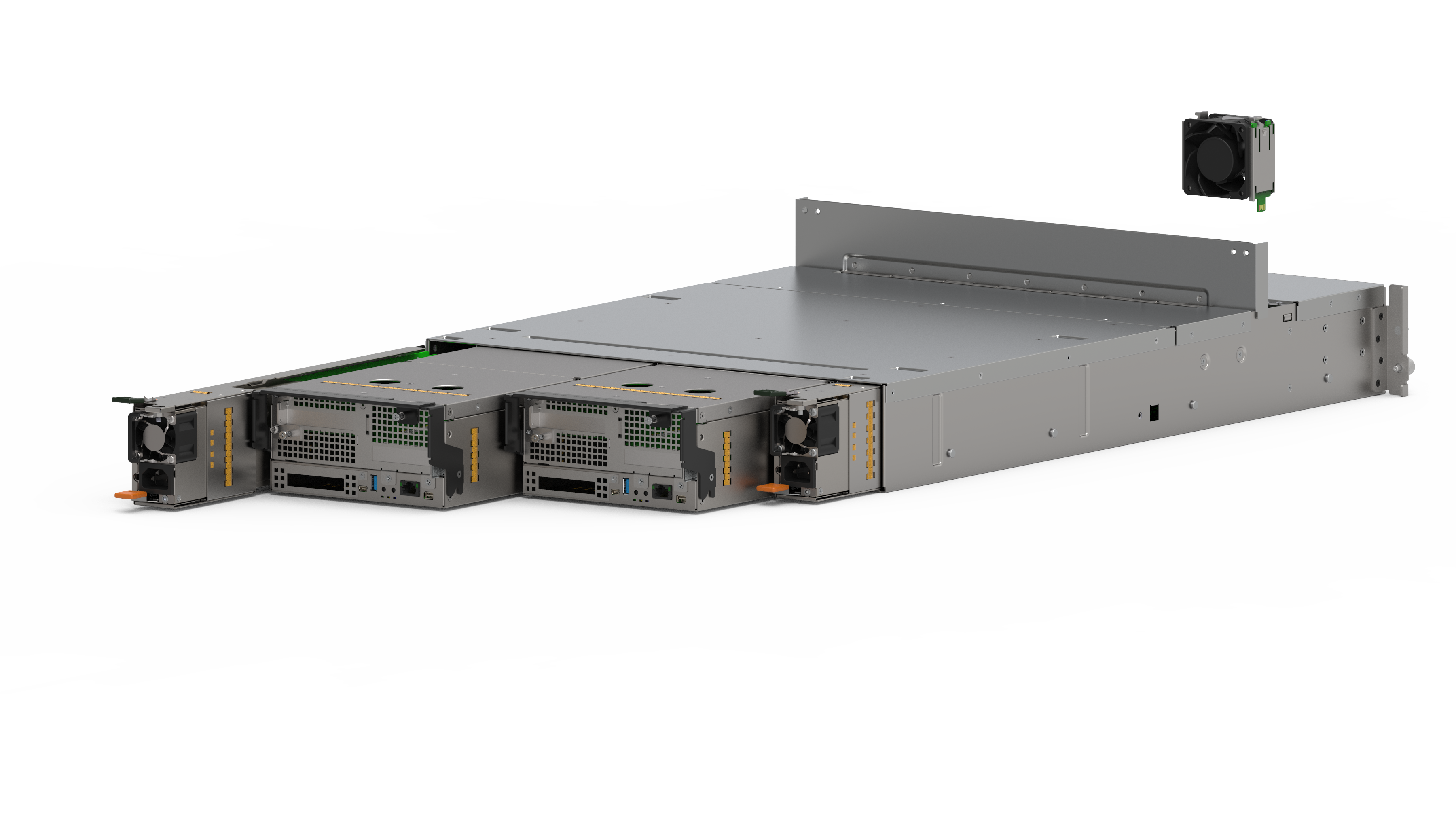

VSS2249R exploded rear iso

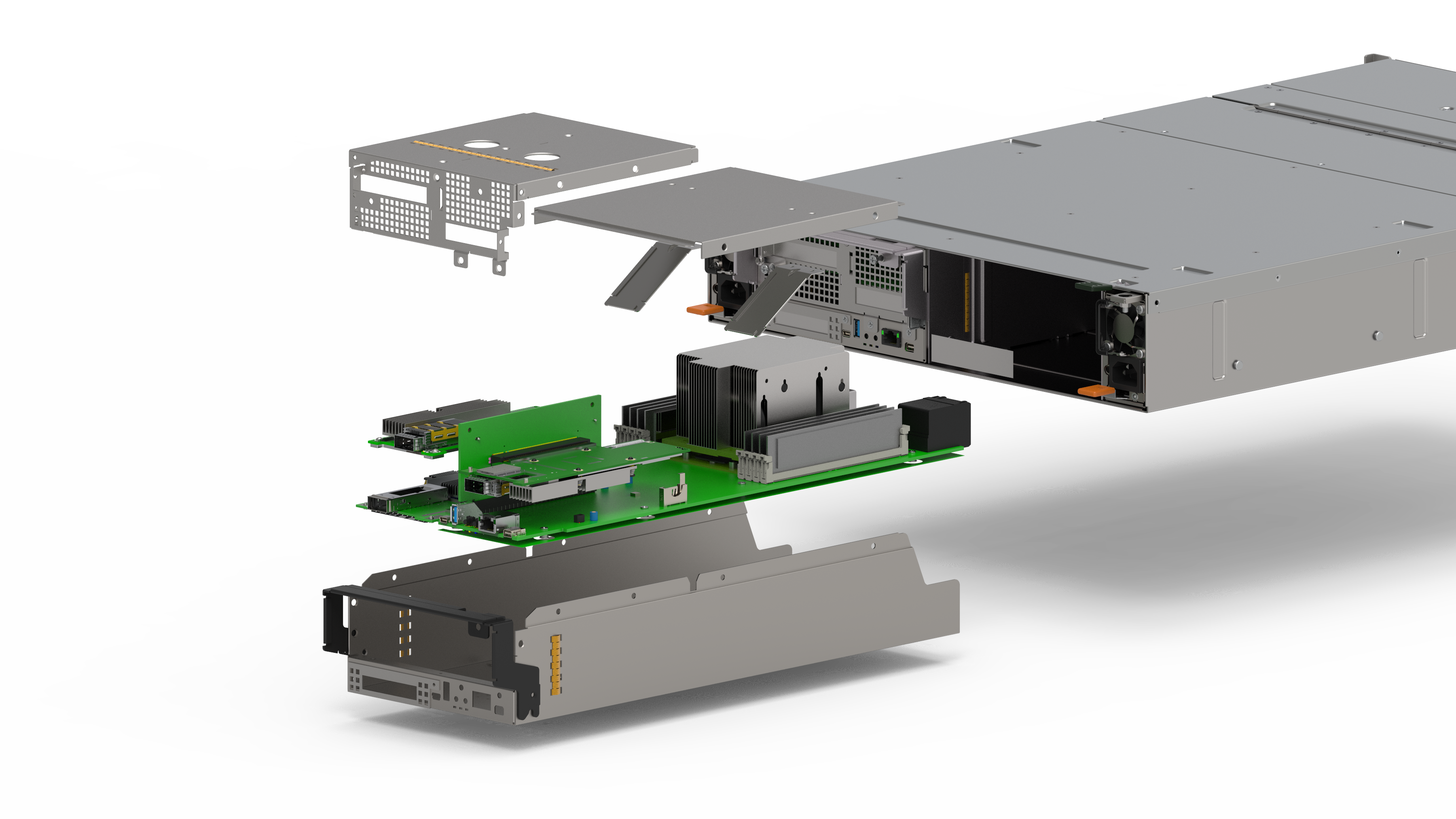

VSS2249R Exploded Canister Rear with PCBA

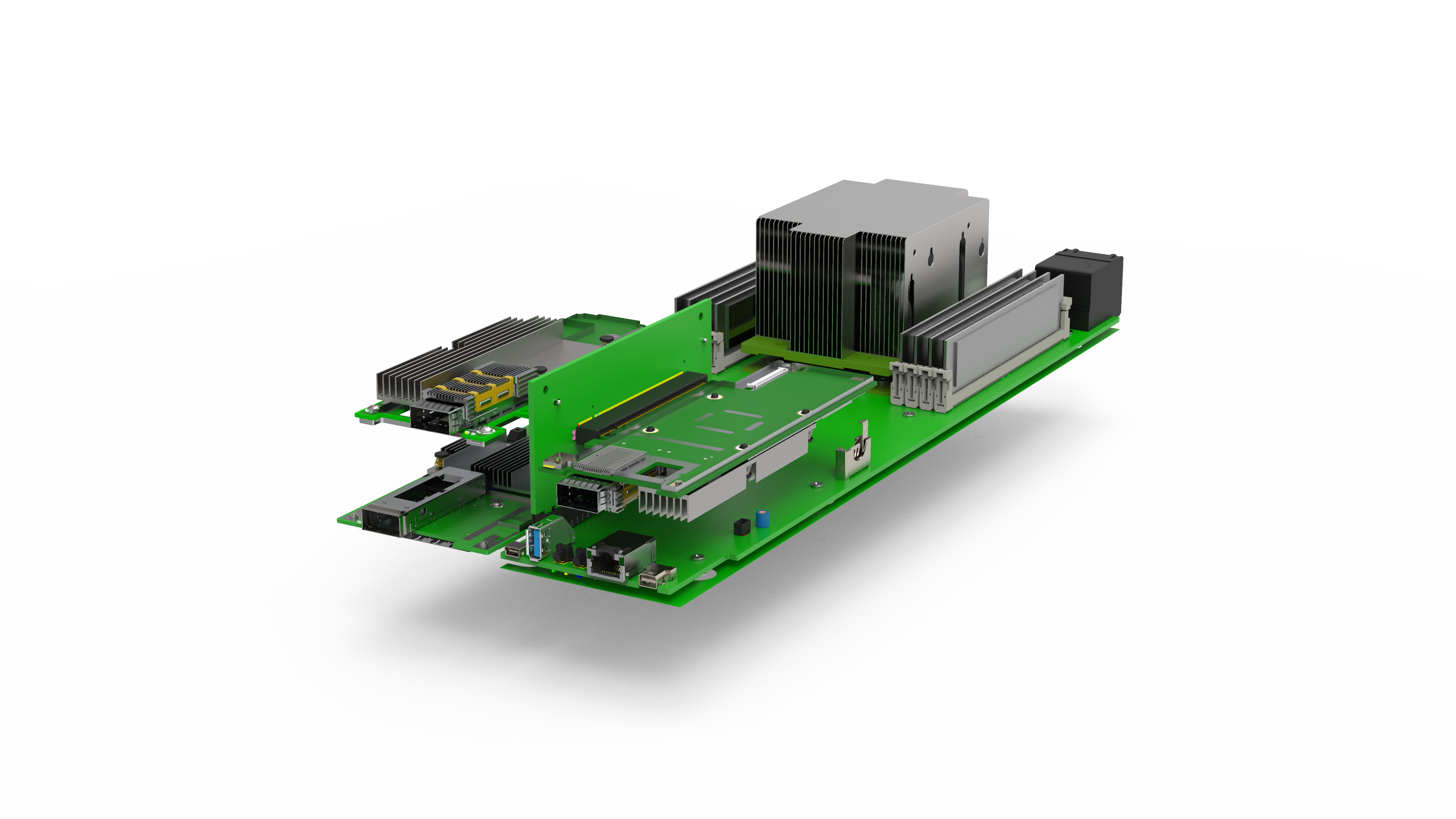

VSS2249R Rear Iso PCBA no shadow
previous arrow
next arrow
VSS2249R hero view
VSS2249R hero view
VSS2249R rear direct
VSS2249R front iso
VSS2249R rear iso
VSS2249R exploded front iso
VSS2249R exploded rear iso
VSS2249R Exploded Canister Rear with PCBA
VSS2249R Rear Iso PCBA no shadow
previous arrow
next arrow
Each server has access to all 24 NVMe drives with dual port devices. The VSS2249R is a dense HA solution that provides the ultimate storage performance in a small package. The enclosure contains two hotswappable server modules. Each of the server modules includes an AMD EPYC™ CPU with two x16 PCIe v4.0 and one OCPNIC 3.0 PCIe v4.0 add in card slots, and up to 8 DIMMs. The VSS2249R fits into an industry standard 19” wide by 1m deep rack. Its flexible configuration allows it to be deployed in a variety of applications. Extremely fast 2U storage with 24 PCIe v4.0 NVMe drives and two servers supporting 96 PCIe lanes to the drives and 96 PCIe lanes to the network. The VSS2249R alleviates job pipeline congestion, a common limitation caused by I/O bottlenecks in many high performance applications such as edge computing storage, analytics, Machine Learning, AI, OLTP transactional databases, high frequency trading, as well as modeling, simulation, scientific research, and other HPC use-cases.

FEATURES

  • Latest AMD CPU technology provides 128 PCIe v4.0 lanes per CPU.24 Hot-pluggable NVMe PCIe v4.0 drives
  • HA system with each server able to access all of the drives
  • Management interface to control drive access & provisioning
  • Hot-pluggable servers, power supplies, fans & drives
  • SFF-8639, PCIe v4.0 NVMe (U.2) drive support (up to 25W per drive)
  • Dual port NVMe drive support
  • Resilient environmental specification with up to a 35C ambient inlet
  • Standard chassis customization & branding available
AC POWER HOT-SWAPPABLE COMPONENTS FIRMWARE DRIVE PARTITIONING 2U ENCLOSURE
Nominal Input Range: 200 – 240VAC Two Server Modules IPMI and Redfish management Management software controls the visibility & access to each drive Dimensions: 3.43 in. H x 17.2 in. W x 27.44 in. D (87 mm H x 438 mm W x 697 mm D)
Input frequency: 50-60 Hz Six fans CLI and GUI control for drive management & status of the enclosure Weight with drives: 56.2 lbs (22.8 kg) max
Power Source: dual redundant 1600W Two AC to DC power supplies − Each supply provides up to 1600W of power Optional railkit with CMA
Input current: 4 amps max @ 180V AC per power supply Two independent AC power inputs
Inrush current: 40 amps peak per power supply 24 NVMe 4.0 drives (hot pluggable)
Maximum system output power rating: 2200W

FAILURE NOTIFICATIONS PERFORMANCE CAPACITY OPERATING ENVIRONMENT NON-OPERATING ENVIRONMENT DRIVE PARTITIONING
Status & fault LEDs for the enclosure, drives & servers Up to 96 GB/s bandwidth between both servers 24-drive capacity: U.2 PCIe 4.0 NVMe drives; dual port drive; up to 25W per drive Temperature: 5° to 35°C Temperature: -40° to 60°C Management software controls the visibility and access to each drive
Relative humidity: 20% to 80% (non-condensing) Relative humidity: 10% to 90% (non-condensing)
Altitude: -200 to 10,000 ft Altitude: -200 to 40,000 ft
Shock: 3G at 11ms, 1/2 sine wave pulse Shock: 10G at 11ms, 1/2 sine wave pulse
Vibration: 0.10G at 5 Hz to 500 Hz Vibration: 0.5G at 5 Hz to 500 Hz

SAFETY STANDARDS QUALITY STANDARDS SERVERS ELECTROMAGNETIC EMISSIONS & IMMUNITY STANDARDS MONITORING & REPORTING
IEC 62368 -1:2014 Manufactured under an ISO 9002 registered quality system EN 55035:2017 Monitoring for temperature, power, cooling (including fan speed control), drives, as well as error rates & quality of service
AMD EPYC™ processors: running I/O at PCle v4.0; each CPU sees all 24 drives; each drive is dual ported and connected to each server module; highly available system EN 55024:2010 Reporting of all serial number, part number, & revisions of the server modules, power supplies, drives & chassis
EN 55032:2015 + AC:2016
EN 61000-3-2:2014
EN 61000-3-3:2013
FCC 47 CFR PART 15 SUBPART B
ICES-003 ISSUE 6:2016


VSS2249R

VSS2249R: storage server with twenty-four, 2.5” PCIe v4.0 NVMe drives (U.2) combined with two AMD server modules.
